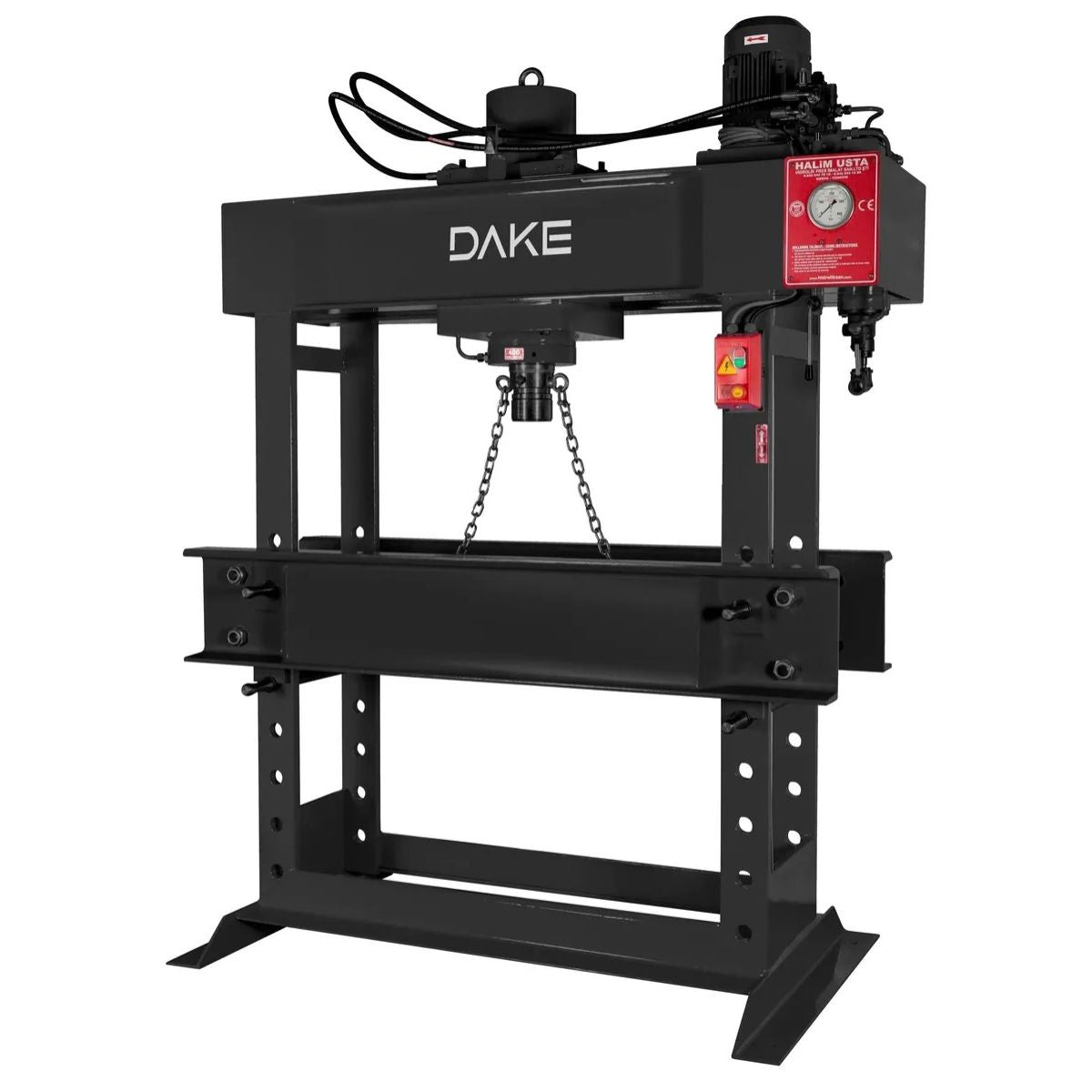

Dake EM-160 160-Ton Electric & Manual H-Frame Hydraulic Press

SKU D-971015

The Dake EM-160 160-Ton Electric & Manual H-Frame Press is a heavy-duty H-frame hydraulic press that delivers steady, controlled force for demanding shop pressing.

160-ton capacity handles heavy pressin
Double acting cylinder powers ram return
Traversing head speeds part alignment

$ 25,595.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

Flat-Bed Shipping: Shipping fees are calculated by Laguna based on your delivery location. After you place your order, our Customer Support Team will contact you with the shipping cost and payment details.

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

Dake EM-160 160-Ton Electric & Manual H-Frame Press

Heavy shop pressing takes steady force and a table you can set at the right height. The Dake EM-160 160-Ton Electric & Manual H-Frame Press delivers both with a welded steel frame, double acting cylinder, and adjustable table.

Welded Steel Frame Holds Rigid Under Load - The welded steel H-frame gives the press a solid base for heavy work at up to 160 tons of capacity.
Double Acting Cylinder Powers the Ram Both Ways - Hydraulic force drives the ram down and back up through 15.75" of travel at a pressing speed of 19 inches per minute.
Adjustable Table Sets a Comfortable Work Height - Lifting chains raise or lower the heavy table, and large table pins hold it in place while you press.
Traversing Head Positions the Ram Over the Work - The head moves left to right across the 61" opening, so you can line up the ram without shifting a heavy part.

Set the table, line up the head, and press bearings or straighten shafts with steady force from one joystick panel.

What's Included

What's Included? Dake EM-160 160-Ton Electric & Manual H-Frame Press

Dake EM-160 160-Ton Electric & Manual H-Frame Press - Provides a 160-ton H-frame hydraulic press for heavy pressing, straightening, and bending work.
V-Blocks - Support round stock and shafts so they stay centered under the ram.

Specs

Dake EM-160 160-Ton Electric & Manual H-Frame Press Specifications

Model: EM-160
Stock Number: D-971015
Machine Type: H-Frame Hydraulic Powered
Cylinder Type: Double Acting
Capacity: 160 Ton
Maximum Operating Pressure: 400 bar
Minimum Operating Pressure: 30 bar
Ram Travel: 15.75 in
Ram Pressing Speed: 19 in/min
Maximum Ram to Table: 35.5 in
Minimum Ram to Table: 10 in
Width Between Uprights: 61 in
Motor: 7.5 HP
Voltage: 220V
Motor Phase: 3 Phase
Hydraulic Pump: 4.5 gal/min
Oil Capacity: 10.5 gal (approx.)
Filter Type: Cartridge type with external access
Controls: Panel mounted 24V CE approved joystick
Gauge: Pressure gauge
Overall Height: 102 in
Base Width: 87 in
Depth: 47 in
Net Weight: 3,310 lb
Electrical Note: Should be wired to main service by a qualified electrician
