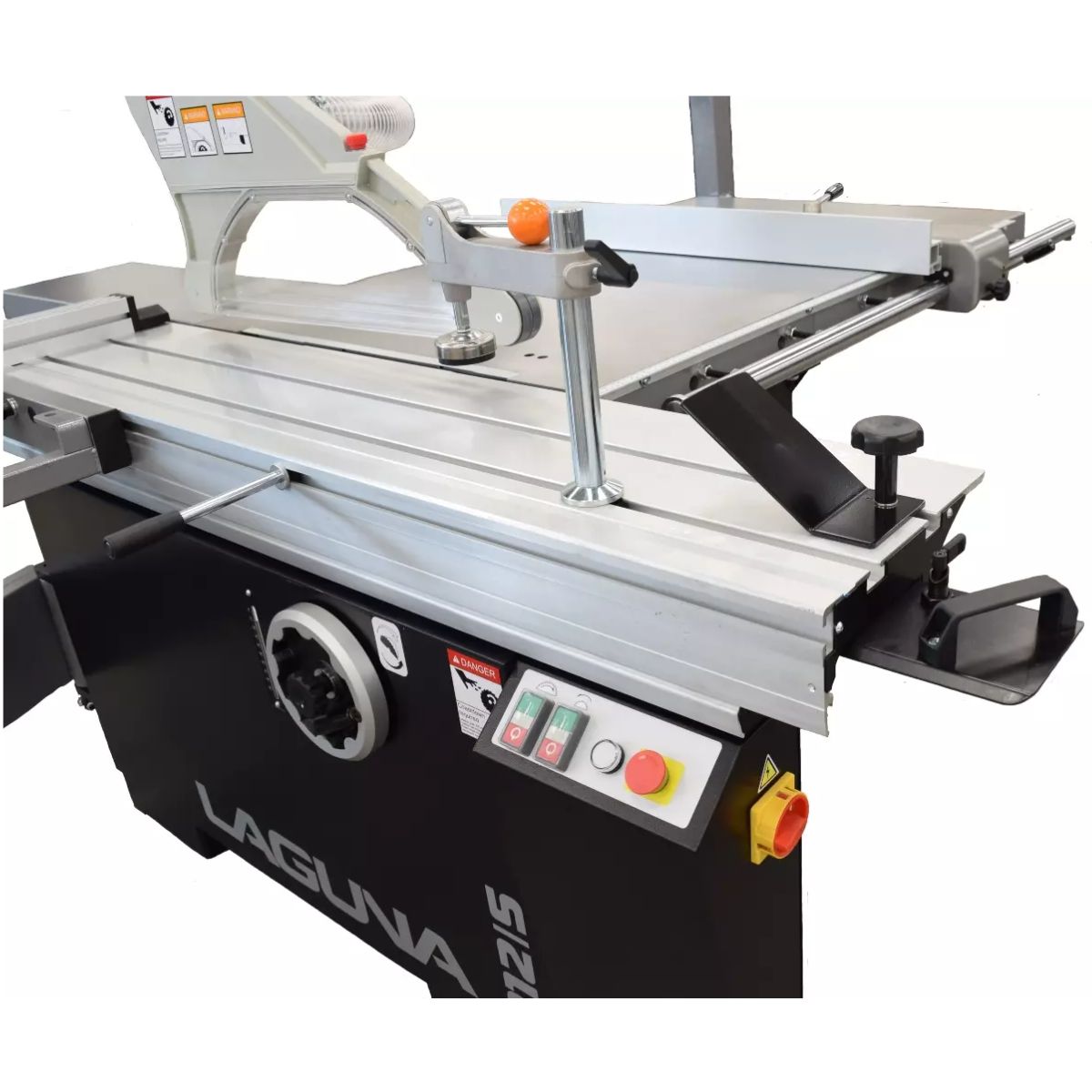

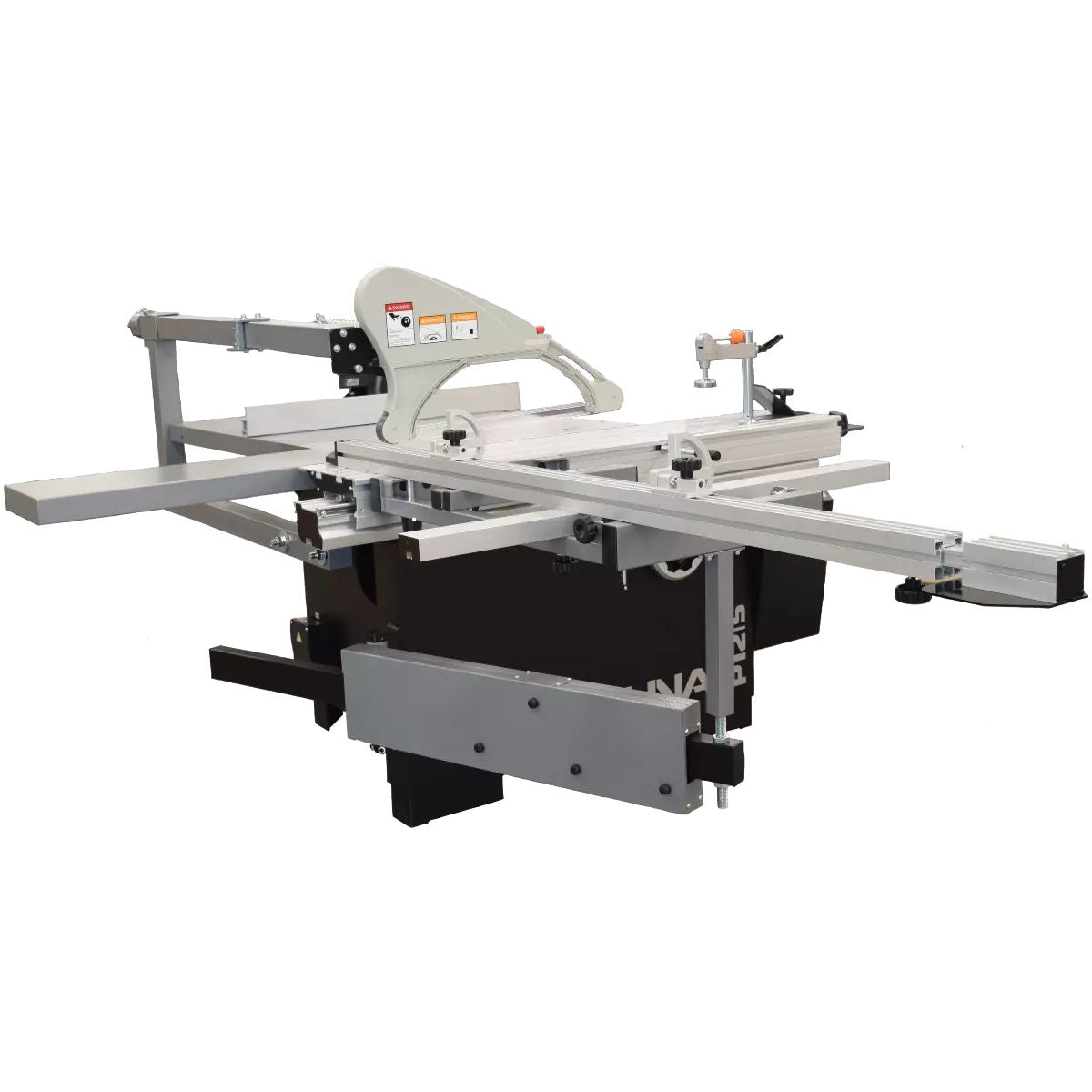

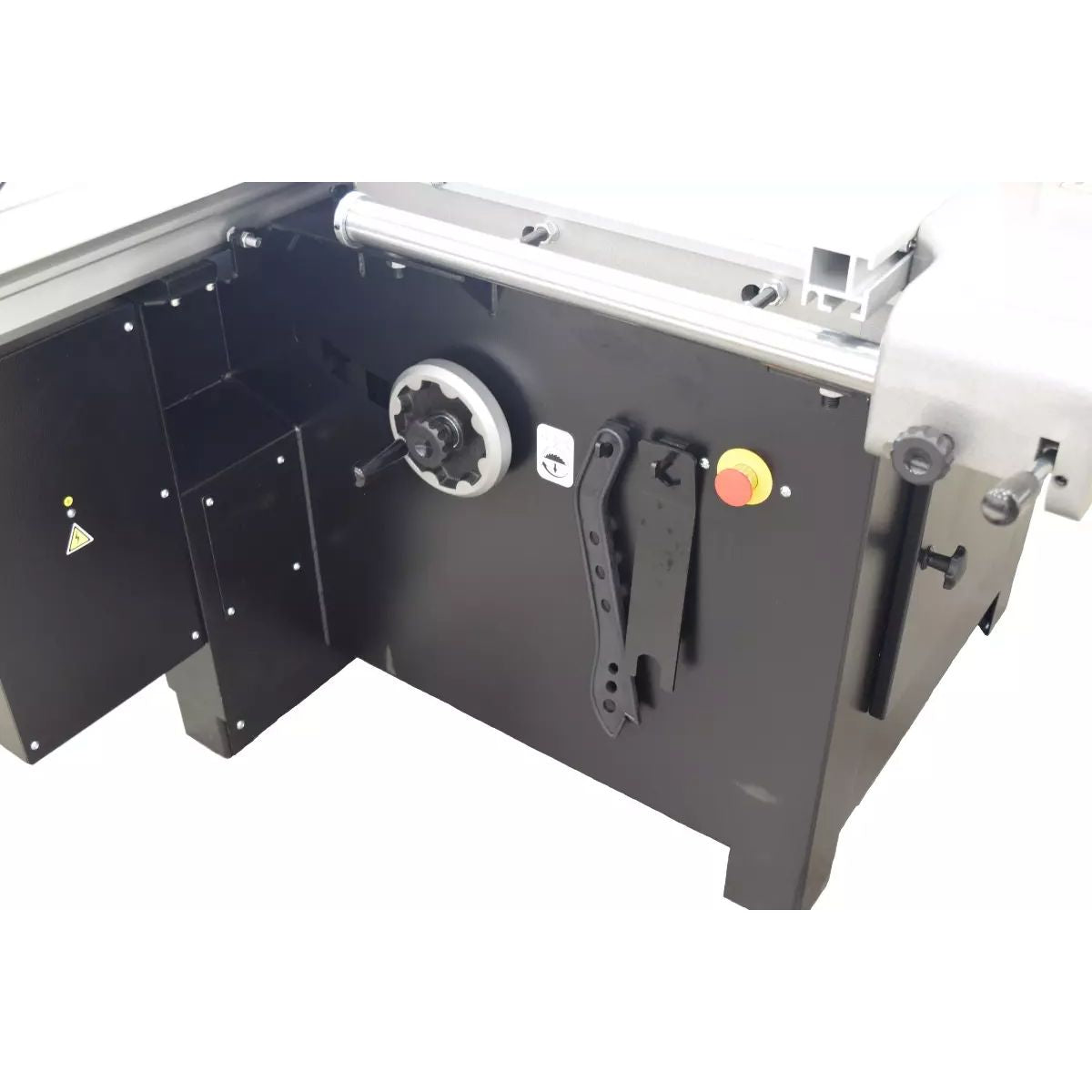

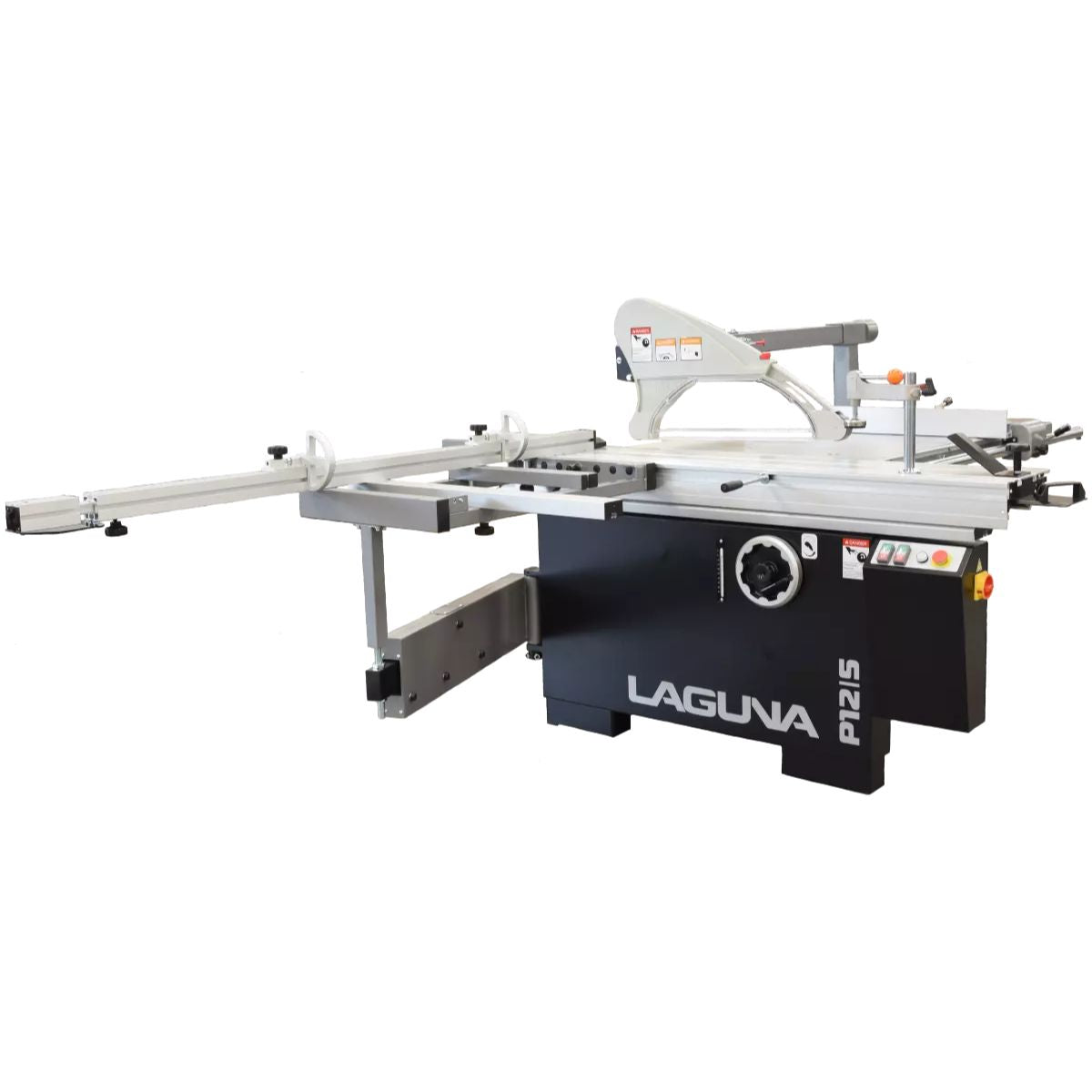

Laguna P12|5 Panel Saw

Laguna P12|5 Panel Saw

What's Included

What's Included? Laguna P12|5 Panel Saw

• Laguna P12|5 Panel Saw — Provides a compact industrial panel saw platform for accurate sheet cutting.

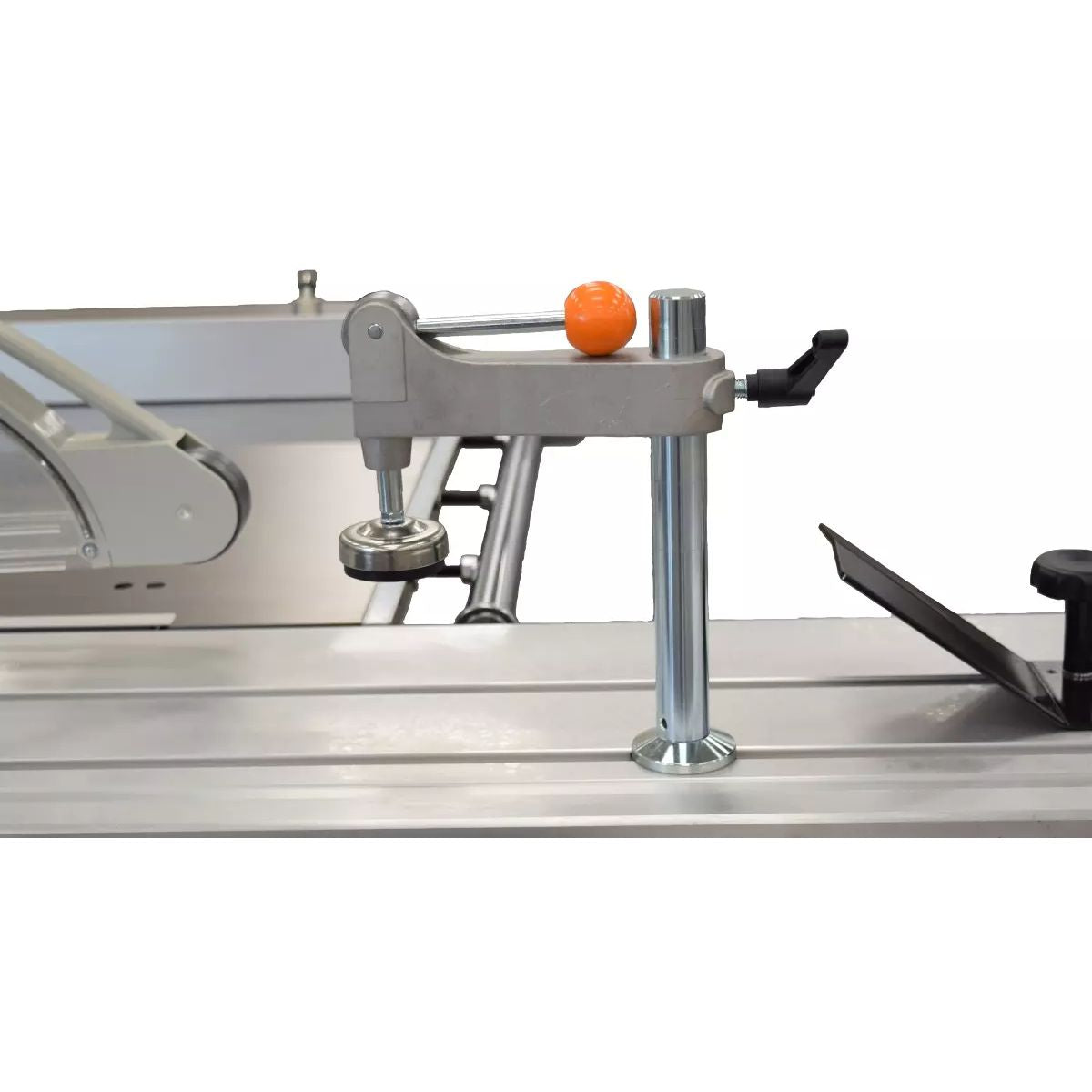

• Hold-Down Clamp — Secures material in place while cutting.

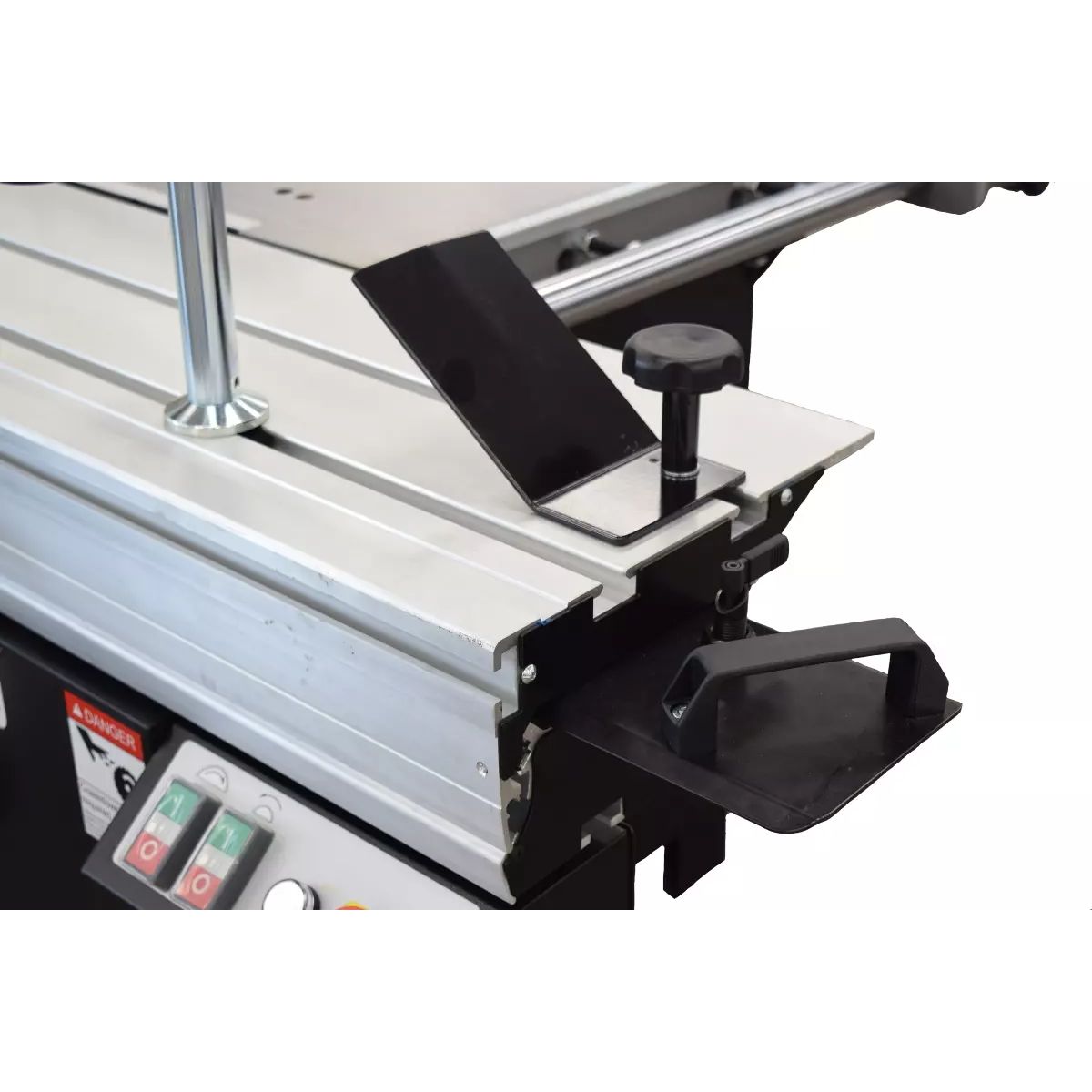

• Rip Shoe — Supports material against the rip fence during cuts.
• Push Handle — Helps guide material safely through the cut.
• 32" x 12" Steel Extension Table — Adds support for larger panels on the main table.

Specs

Laguna P12|5 Panel Saw Specifications

• Model: P12|5
• Stock Number: MPSP12-5-0135
• Main Motor: 5 HP

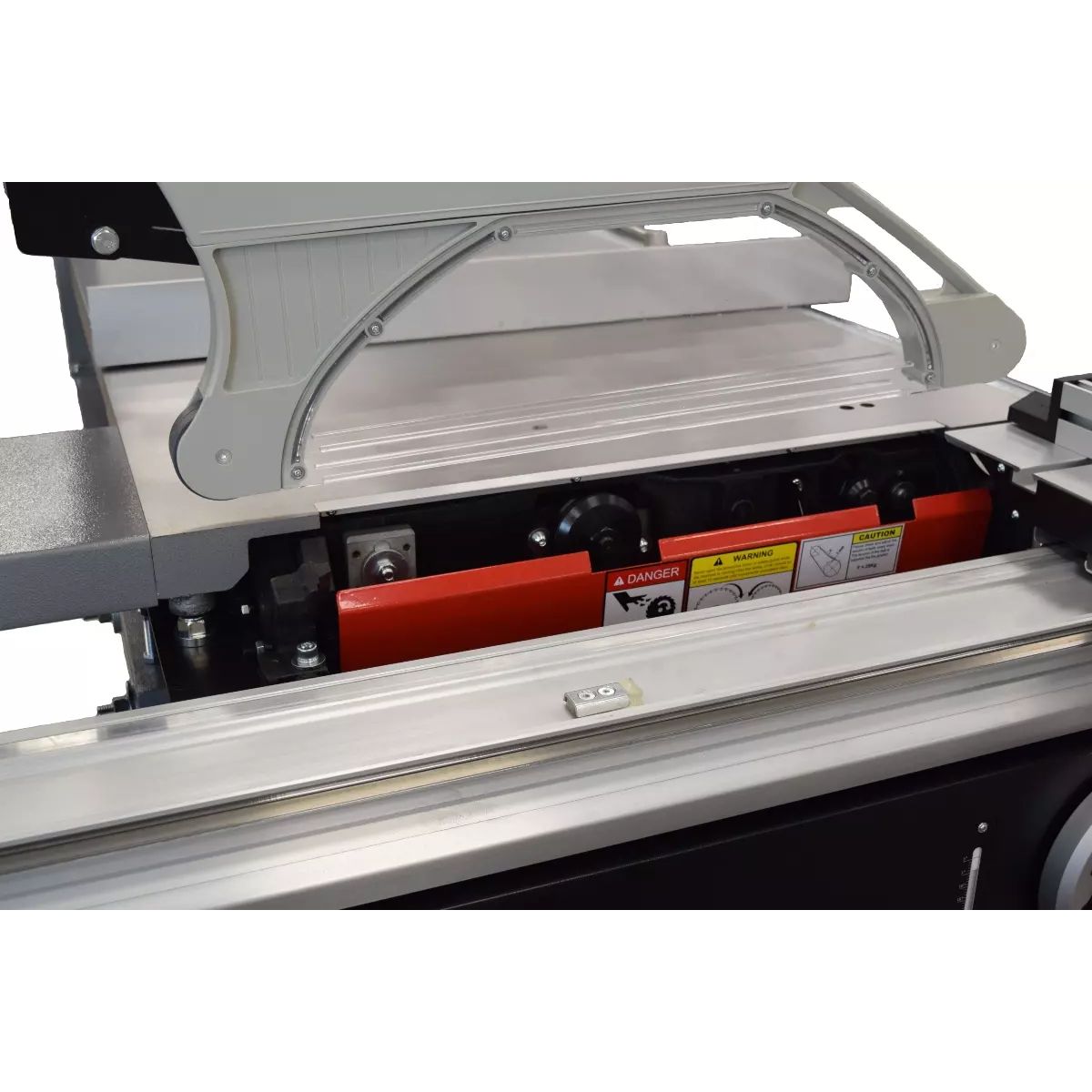

• Scoring Motor: 3/4 HP
• Voltage: 220V, 1 Phase, 60 Hz
• Blade Capacity: 12", 14"/300mm, 355mm
• Max Blade: 14"/355mm (minimum height when lowered: 1"/25mm)
• Max Scoring Blade: 4-3/4"/120mm
• Scoring Adjusting: T-Handle Through Cast Top
• Arbor: 30mm (Main), 20mm (Scoring)
• Max Cutting Height 90° with 14"/355mm Blade: 4-1/2" (155mm)
• Max Cutting Height 90° with 12"/305mm Blade: 3-1/2" (90mm)
• Max Cutting Height 45° with 14"/355mm Blade: 2-3/4" (70mm)
• Max Cutting Height 45° with 12"/305mm Blade: 2-3/8" (62mm)
• Main Blade Speed: 4000 RPM
• Scoring Blade Speed: 8000 RPM
• Dust Collection Port: 4" (100mm)
• Sliding Table Length: 63" (1600mm)
• Sliding Table Width: 12" (305mm)
• Main Cast Table: 21-1/2" x 35-1/4"
• Rip Fence Capacity: 51" (1300mm)
• Rip Fence Bar: 1-5/8" (40mm) Solid Steel, Micro Polished
• Rip Fence Micro Adjust: Included

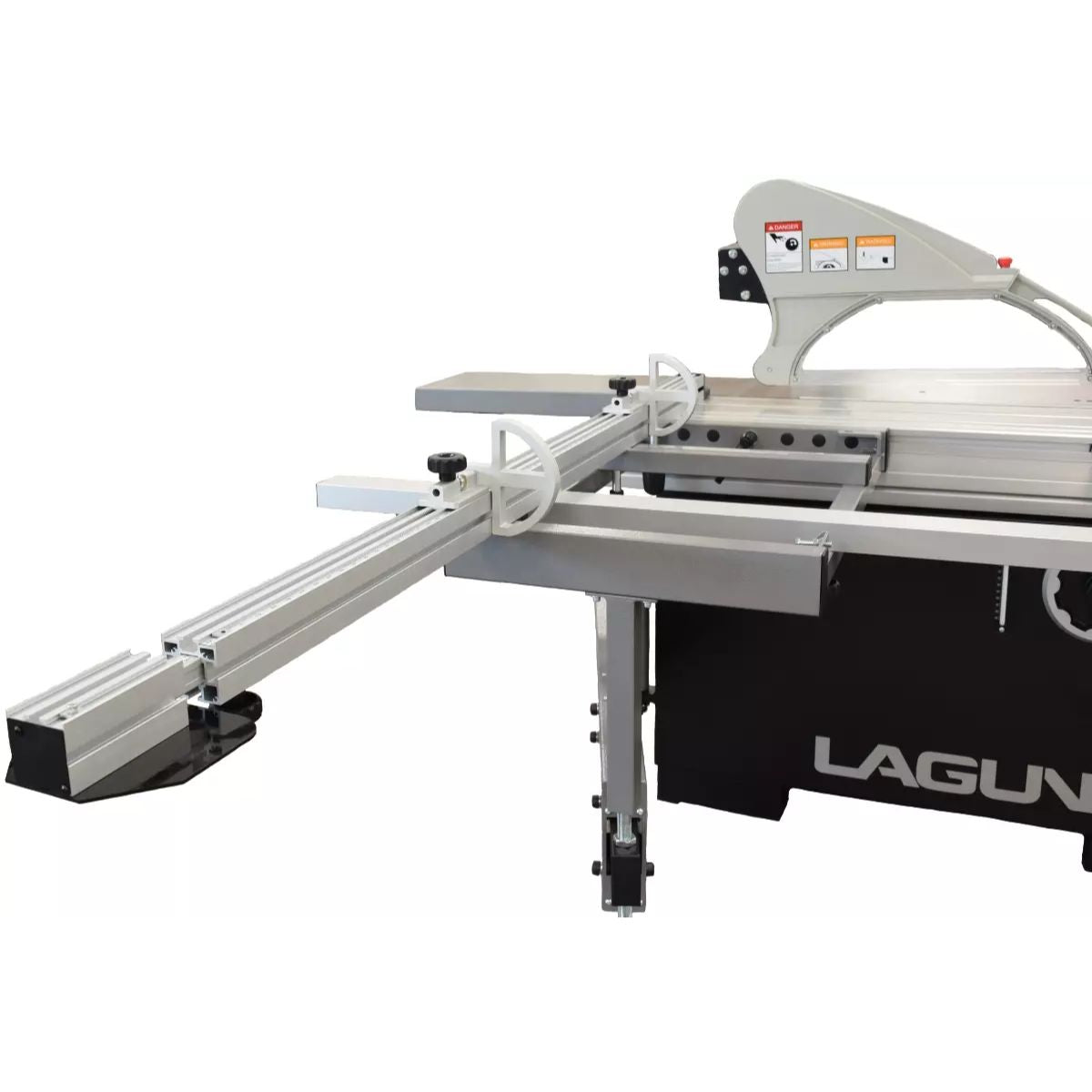

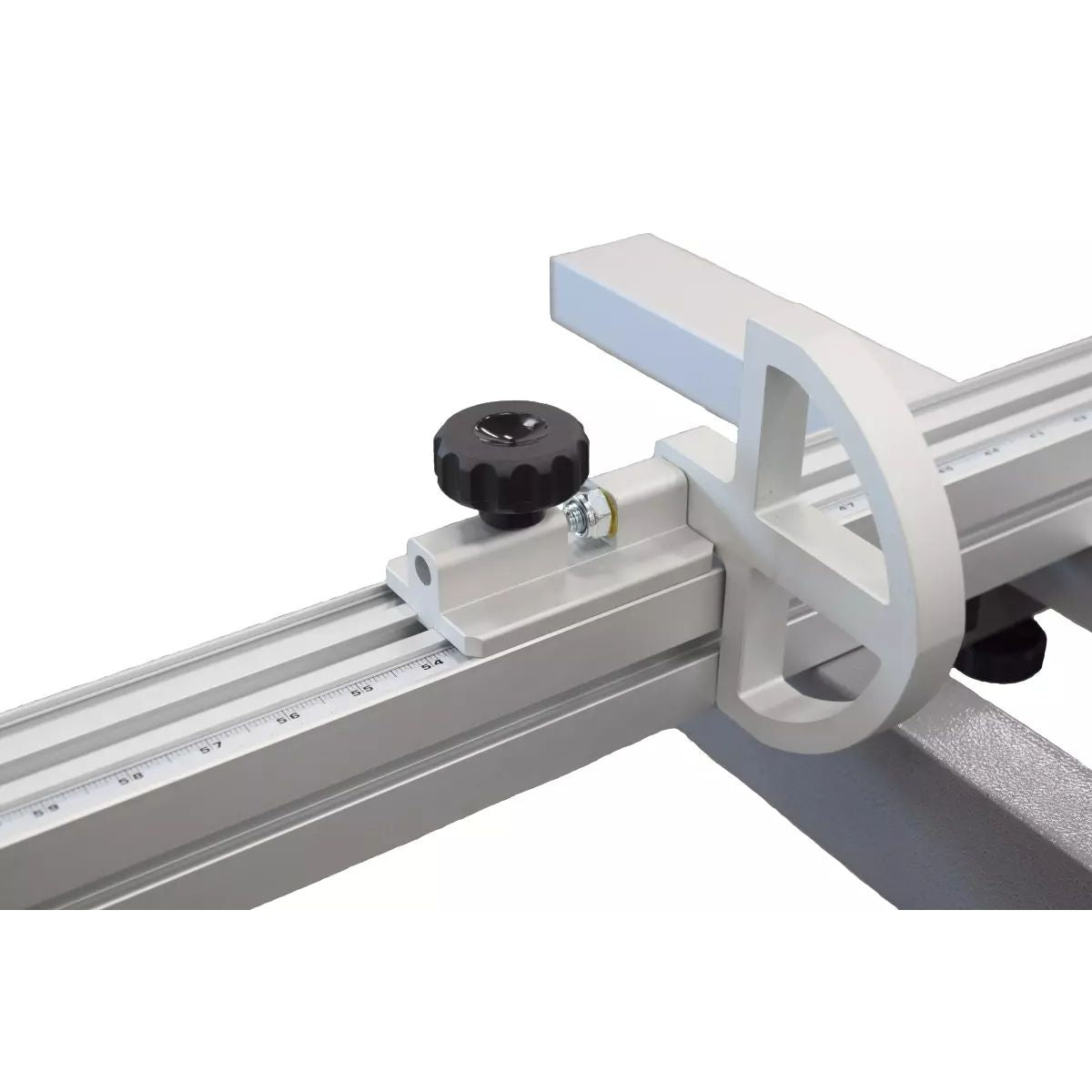

• Crosscut Fence Max Collapsed: 73"
• Crosscut Fence Max Extended: 134"
• Crosscut Fence Readout: Inch/Metric
• Shipping Dimensions: 83" x 46" x 46"
• Net Weight: 1405 lb
• Shipping Weight: 1525 lb
