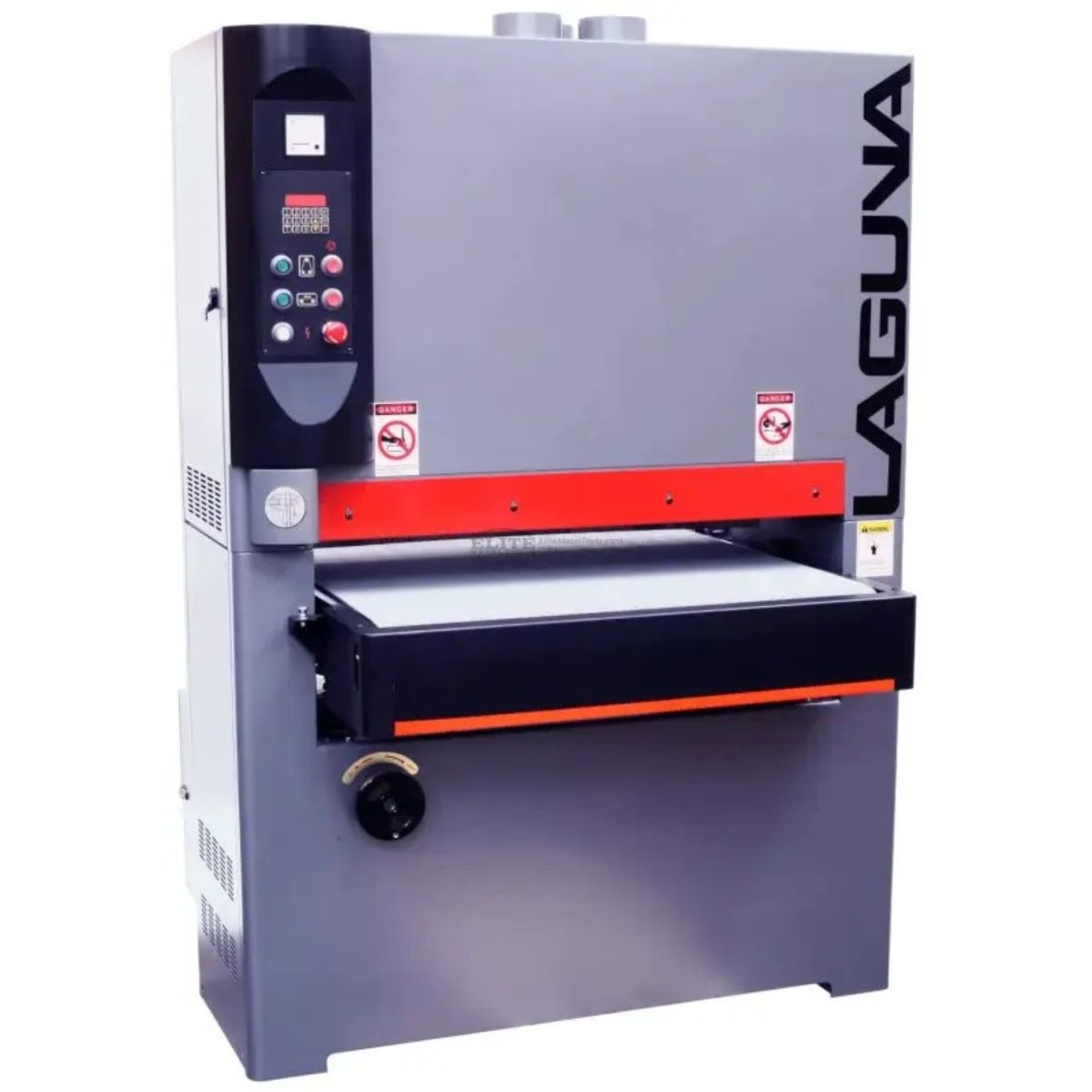

Laguna Pro 37" Widebelt Sander

Laguna Pro 37" Widebelt Sander

by Laguna Tools

SKU MSANWB37X75-1K-20-0197

The Laguna Pro 37" Widebelt Sander is a combination head widebelt sander that dimensions and finishes wide boards without a separate planer.

Combination head runs drum or platen
Auto thickness gauge speeds setup
Choose single or three phase power

$ 22,999.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Choose your Motor

20HP 220V 3PH

10HP 220V 1PH

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna Pro 37" Widebelt Sander

Wide boards and thick stock need serious sanding power, and a single motor option doesn't fit every shop's electrical setup. Available in 10HP single phase or 20HP three phase, the Laguna Pro 37" Widebelt Sander dimensions and finishes stock with one combination head.

Combination Head Runs Drum and Platen Sanding - The single head lets you sand with the drum, the platen, or both together, matching the method to the job.
Variable Speed Conveyor Adjusts Feed Rate - A separate 1HP motor drives the carpet feed belt from 12 to 60 FPM so you can match feed speed to material and finish.
Auto Thickness Gauge Simplifies Setup - The gauge measures your stock and sets table height automatically, cutting down setup time between passes.
Air Operated Disc Brake Stops Belt Quickly - The sanding belt motor brake engages with air pressure to stop the belt fast, adding control during operation.

Set it up once and you can move from rough dimensioning to final finish passes without changing machines.

Laguna Pro 37" Widebelt Sander

Laguna Pro 37" Widebelt Sander

Laguna Pro 37" Widebelt Sander

What's Included

What's Included? Laguna Pro 37" Widebelt Sander

Laguna Pro 37" Widebelt Sander — Provides a complete combination head widebelt sanding platform ready to set up in the shop.

Specs

Laguna Pro 37" Widebelt Sander Specifications

Head: Single combination head
Capacity: 37"
Belt Length: 75"
Max Sanding Width: 36-1/2"
Sanding Belt Size: 37" x 75"
Adjustable Sanding Platen: 3"
Length of Sanding Drum: 37"
Sanding Drum RPM: 1725
Variable Feed Motor: 1HP
Table Lifting Motor: 0.25HP
Variable Conveyor Speed: 12–60 FPM
Dust Port Size: 4"
Number of Dust Ports: 3
Footprint: 19" x 51"
Width x Depth: 56-1/2" x 51"
Height With Dust Collection Ports: 77-1/2"
Height Without Dust Collection Ports: 71-1/2"
Conveyor Height at Lowest Setting: 32"
Cabinet: Steel
Operating Air Pressure: 6 Bar
Sanding Belt Oscillation: Adjustable
Sanding Belt Motor Brake: Air Operated Disc Brake
CSA: Fully Certified

Specs by Configuration

20HP 220V 3PH — Main Motor: 20HP, 3 Phase; Sanding Drum Diameter: 5"
10HP 220V 1PH — Main Motor: 10HP, 1 Phase; Sanding Drum Diameter: 4"

Laguna Pro 37" Widebelt Sander Manual
