The Laguna SuperBrush 24" Double-Head Sander is a production brush sander that delivers consistent finishing on flat and profiled parts.

Dual brush heads reach profiled edges
Variable speeds adjust finish results
Tension rollers keep parts feeding straight

$ 22,499.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

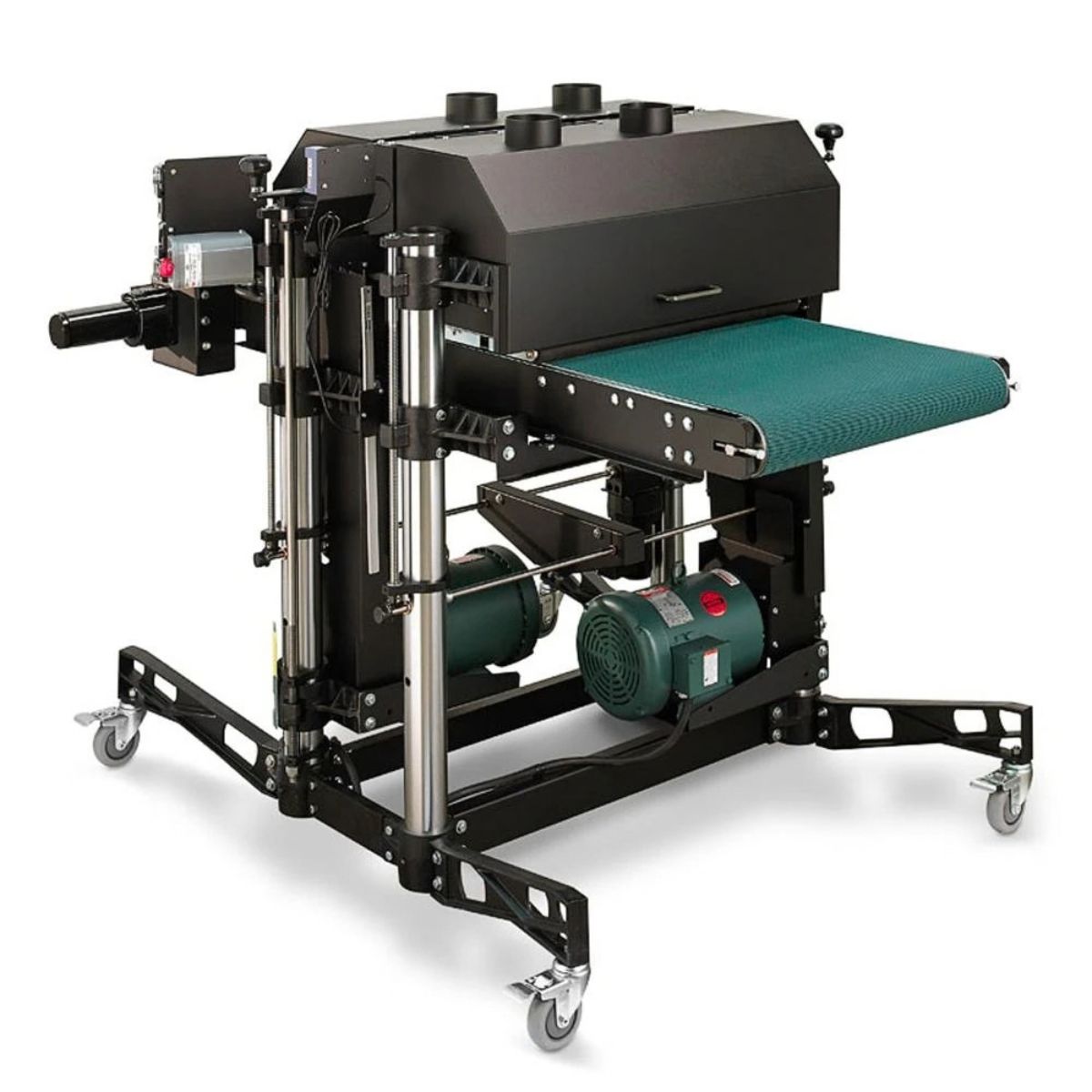

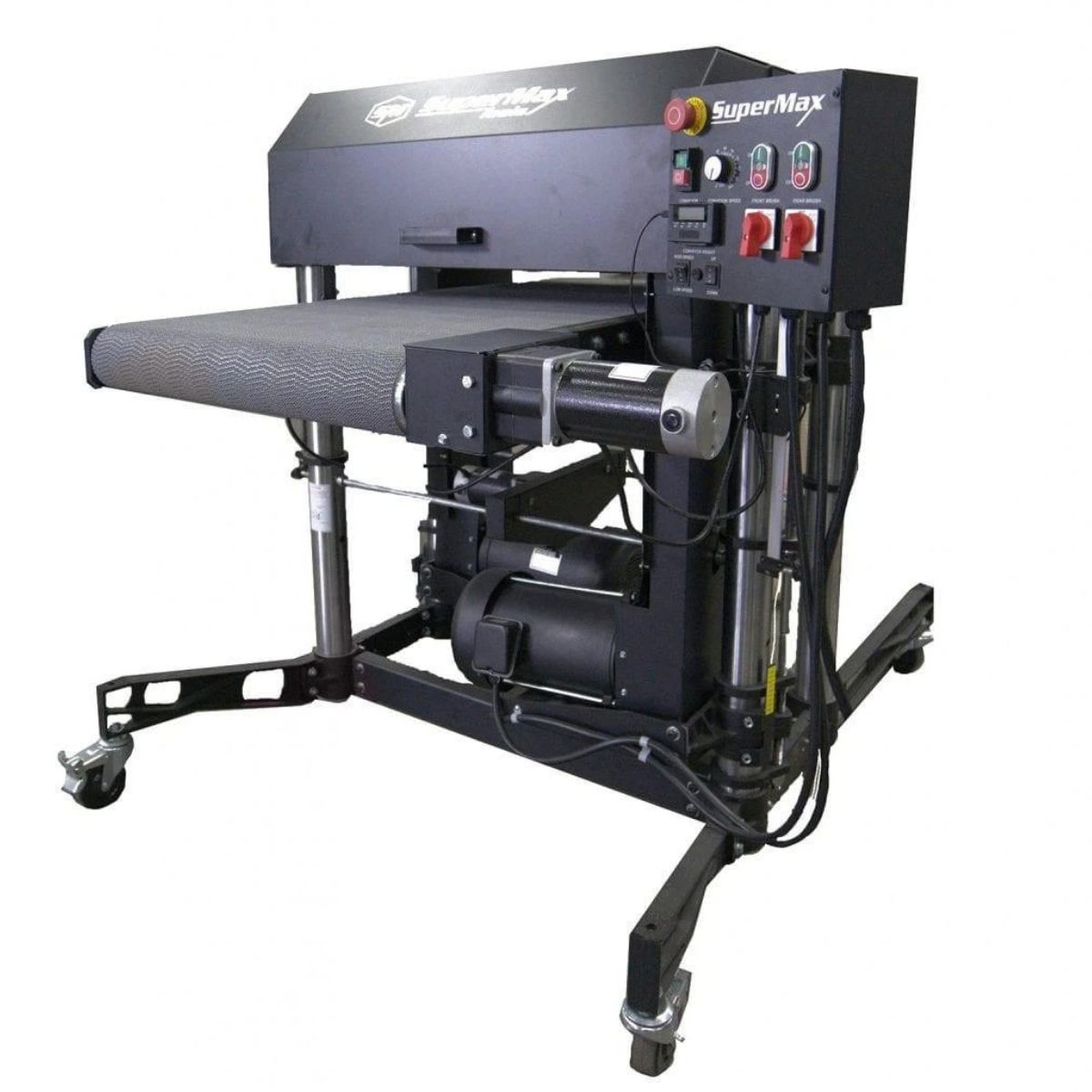

Laguna SuperBrush 24" Double-Head Sander

Hand sanding raw, sealed, or primed parts is slow, and results change from one piece to the next. The Laguna SuperBrush 24" Double-Head Sander feeds parts under two brush heads for steady, even finishing across a full production run.

Dual Brush Heads Reach Profiles and Edges - Two brush heads work each part in sequence, reaching profiles and edges that flat sanders and hand work often miss.

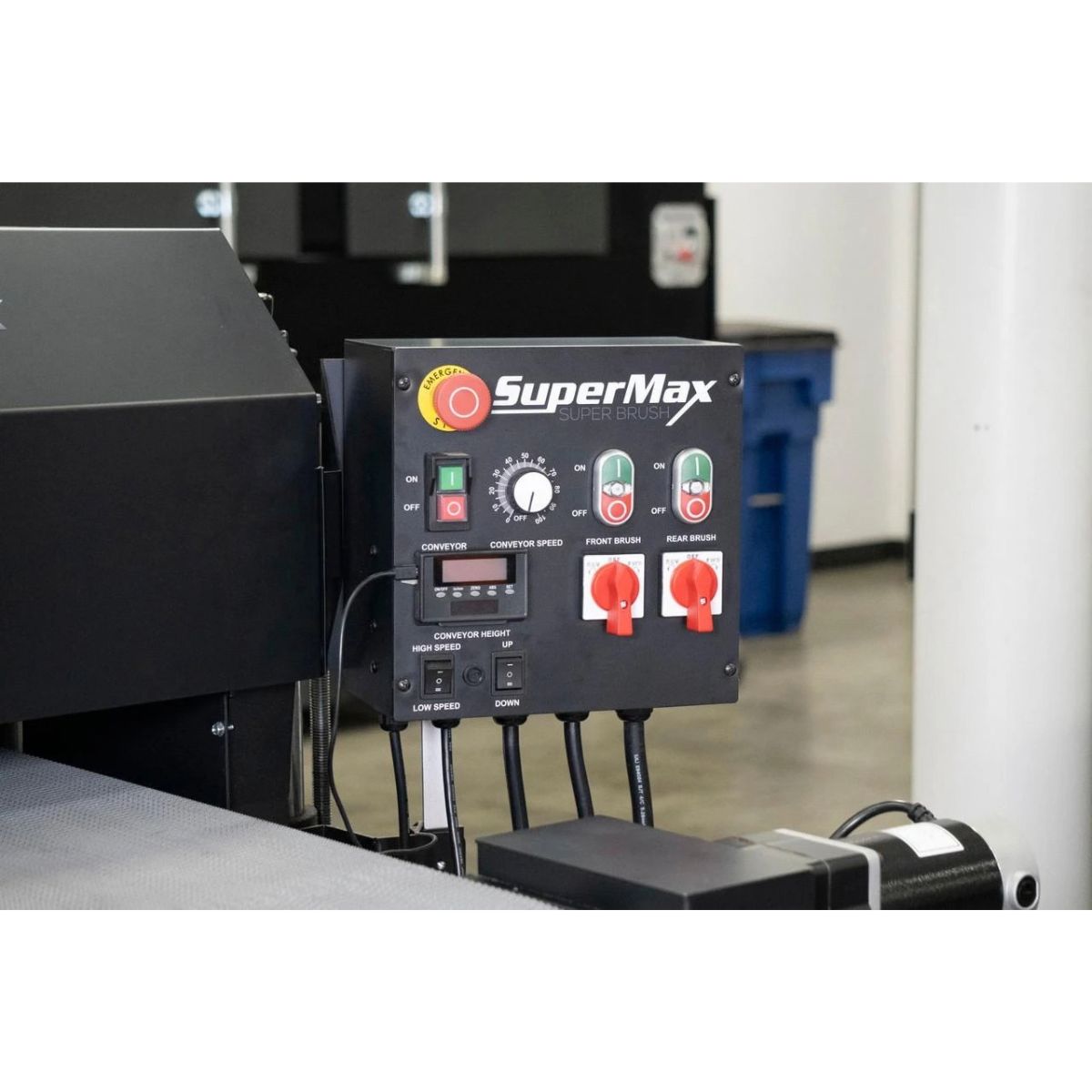

Variable Brush and Conveyor Speeds Match the Job - Brush speed runs from 400 to 1200 RPM and the conveyor from 0 to 30 FPM, so you can set anything from a light scuff to a wire brushed texture.

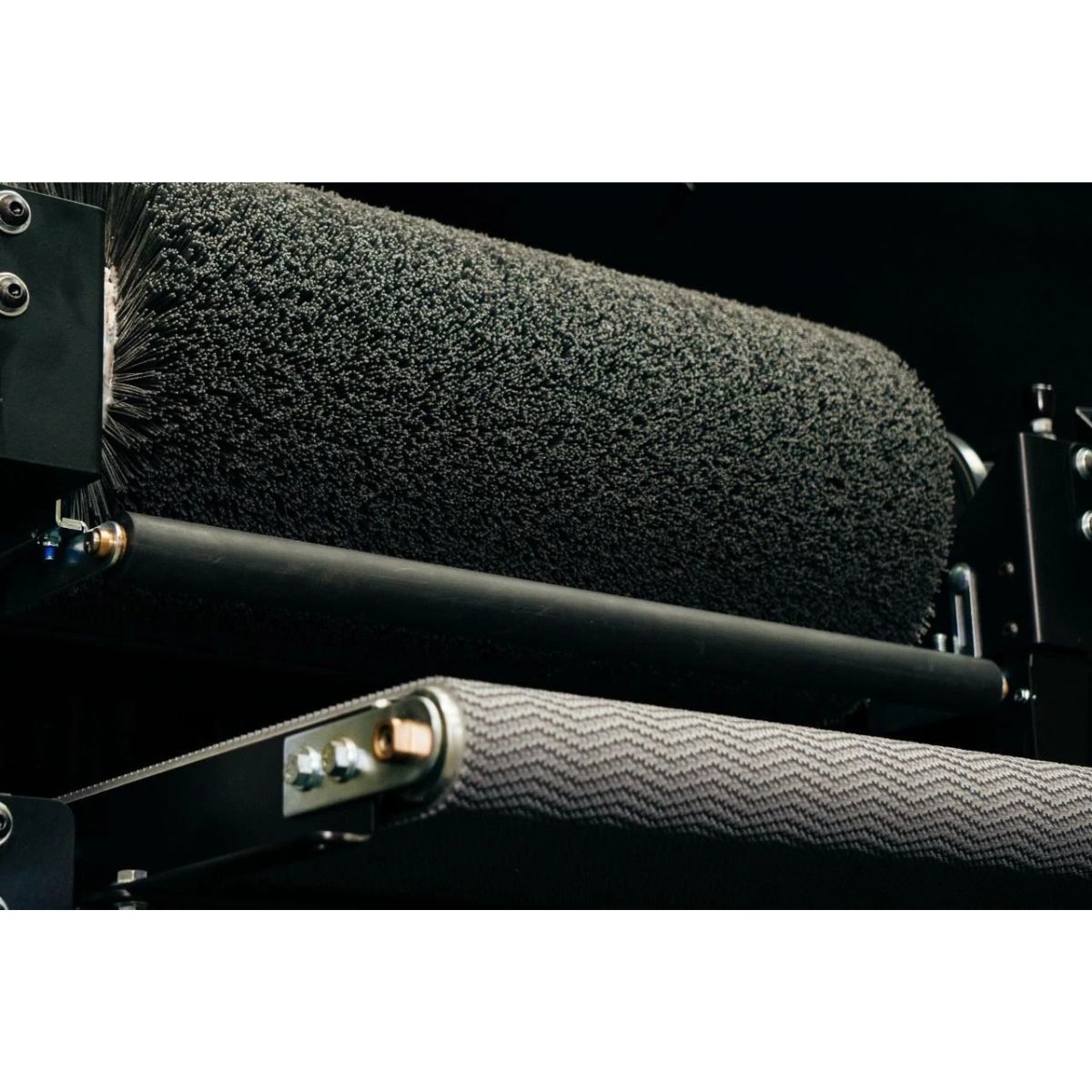

Tension Rollers Keep Stock From Slipping - Adjustable rollers hold parts firmly on the conveyor so each piece feeds straight and gets the same finish.

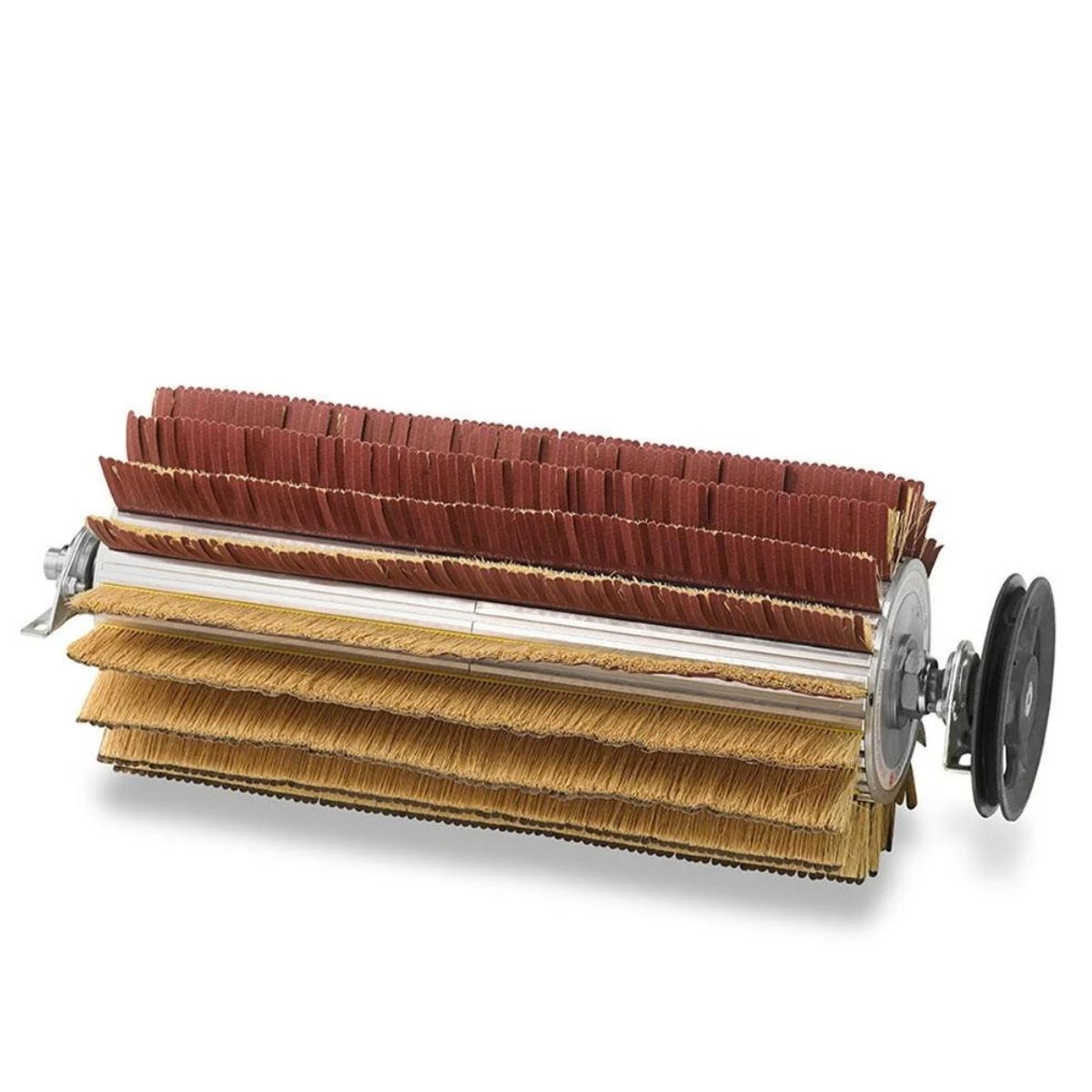

Quick Change Brush Heads Speed Setup - Brush heads swap out fast, letting you move between raw wood sanding, sealer sanding, and texturing with little downtime.

Load a stack of raised panel doors after sealer, set the speeds once, and every door comes off the conveyor with the same smooth finish.

Laguna SuperBrush 24" Double-Head Sander

Laguna SuperBrush 24" Double-Head Sander

Laguna SuperBrush 24" Double-Head Sander

Laguna SuperBrush 24" Double-Head Sander

What's Included

What's Included? Laguna SuperBrush 24" Double-Head Sander

Laguna SuperBrush 24" Double-Head Sander - Gives you a two head brush sander for consistent finishing on parts up to 24 inches wide.

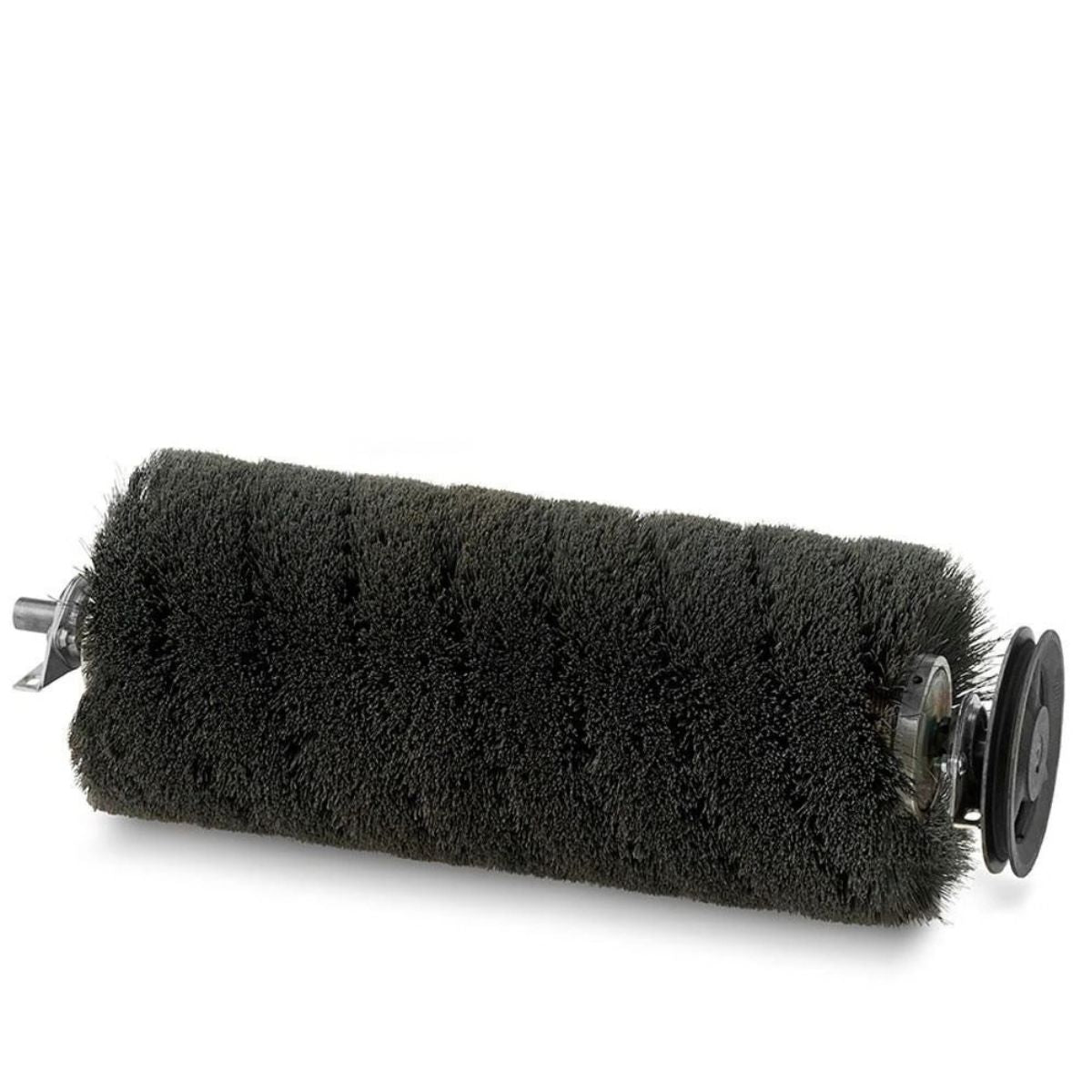

Two Brushes - Lets you start sanding right away with both heads installed.
Caster Set - Makes it easier to move the machine around the shop.

Specs

Laguna SuperBrush 24" Double-Head Sander Specifications

SKU: SUPMX-93267-2
Number of Brush Heads: 2
Maximum Sanding Width: 24 in
Minimum Stock Length: 11 in
Maximum Stock Thickness: 9 in (varies with brush style)
Minimum Stock Thickness: 1/32 in (varies by application)
Typical Brush Diameter: 9 to 12 in
Typical Bristle Length: 1-1/2 to 3 in
Brush Speed: 400 to 1200 RPM, variable
Conveyor Speed: 0 to 30 FPM, variable
Conveyor Motor: Direct drive DC, 220 in-lb torque
Drive Motors: (2) 7-1/2 HP TEFC
Voltage: 208-230V, 60 Hz
Motor Phase: 3 Phase
Electrical Service: 20 amp (2)
Dust Ports: (4) 4 in
Minimum Dust Collection: 1800 CFM
Shipping Weight: 1100 lb
