Laguna SuperBrush 36" Double-Head Sander

Laguna SuperBrush 36" Double-Head Sander

by Laguna Tools

SKU SUPMX-93367-2

The Laguna SuperBrush 36" Double-Head Sander is a production brush sander that delivers consistent surface prep and texturing on wide panels.

Two brush heads finish in one pass
Variable brush speed tunes each finis
Digital readout tracks stock thickness

$ 33,299.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna SuperBrush 36" Double-Head Sander

Hand sanding sealer coats, breaking edges, and distressing boards slows down every production run. The Laguna SuperBrush 36" Double-Head Sander handles that finishing work with two brush heads and a conveyor feed, so parts come out consistent.

Two Brush Heads Finish More in One Pass - Two 7-1/2 HP brush heads work the stock back to back, so you can open grain, denib, or break edges in a single trip.
Variable Brush and Conveyor Speeds Dial In the Finish - Brush speed runs from 400 to 1200 RPM and the conveyor runs from 0 to 30 FPM, so you can go light for scuff sanding or heavy for texturing.
Reversible First Brush Adds Finishing Options - Running the first brush in either direction gives you more control over how it works the surface.
ProScale Digital Readout Tracks Stock Thickness - The DRO shows material removed per pass and the actual thickness at the outfeed, so you can hit your target without test pieces.

Run a stack of cabinet doors through after the sealer coat and send them straight to topcoat without hand sanding.

Laguna SuperBrush 36" Double-Head Sander

Laguna SuperBrush 36" Double-Head Sander

Laguna SuperBrush 36" Double-Head Sander

Laguna SuperBrush 36" Double-Head Sander

What's Included

What's Included? Laguna SuperBrush 36" Double-Head Sander

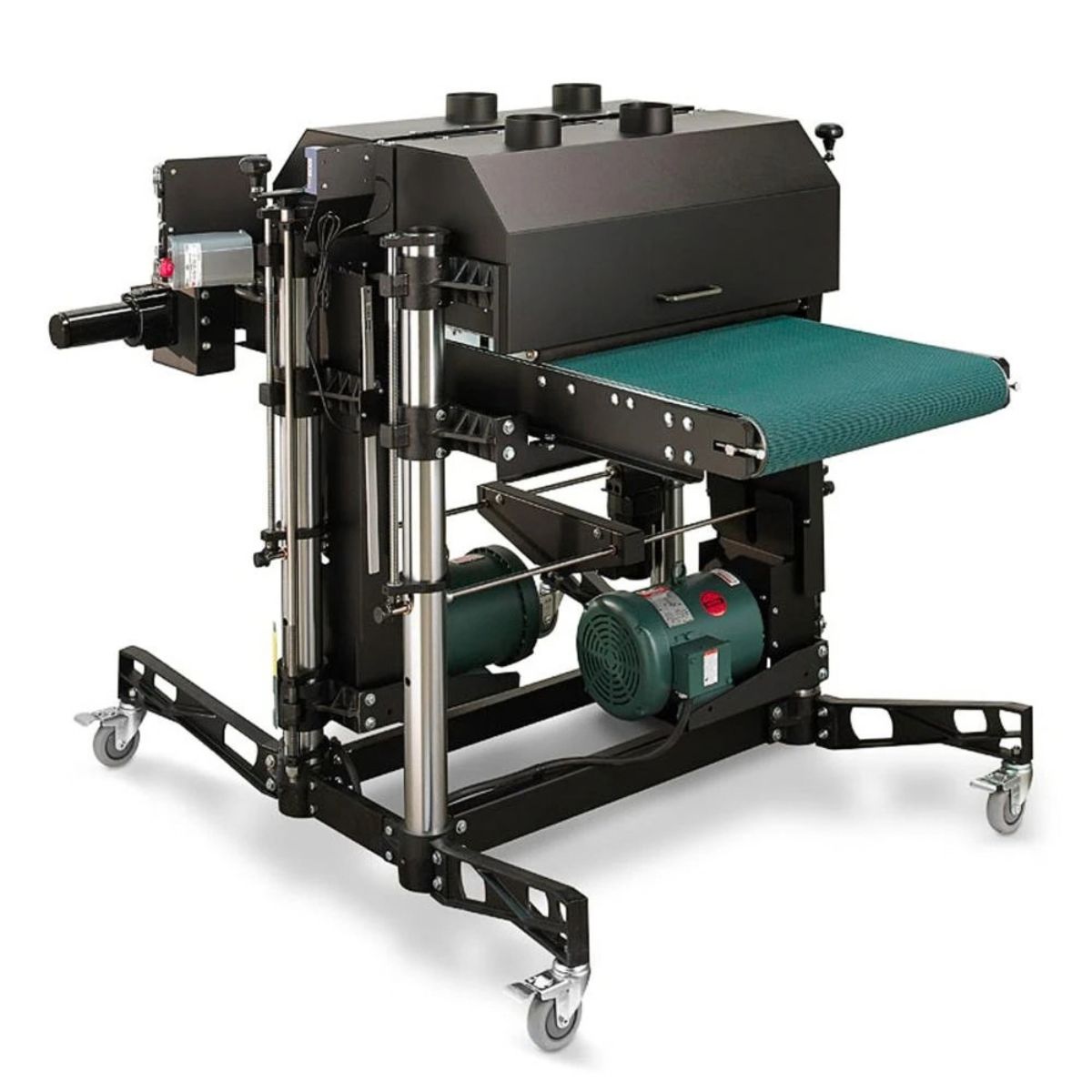

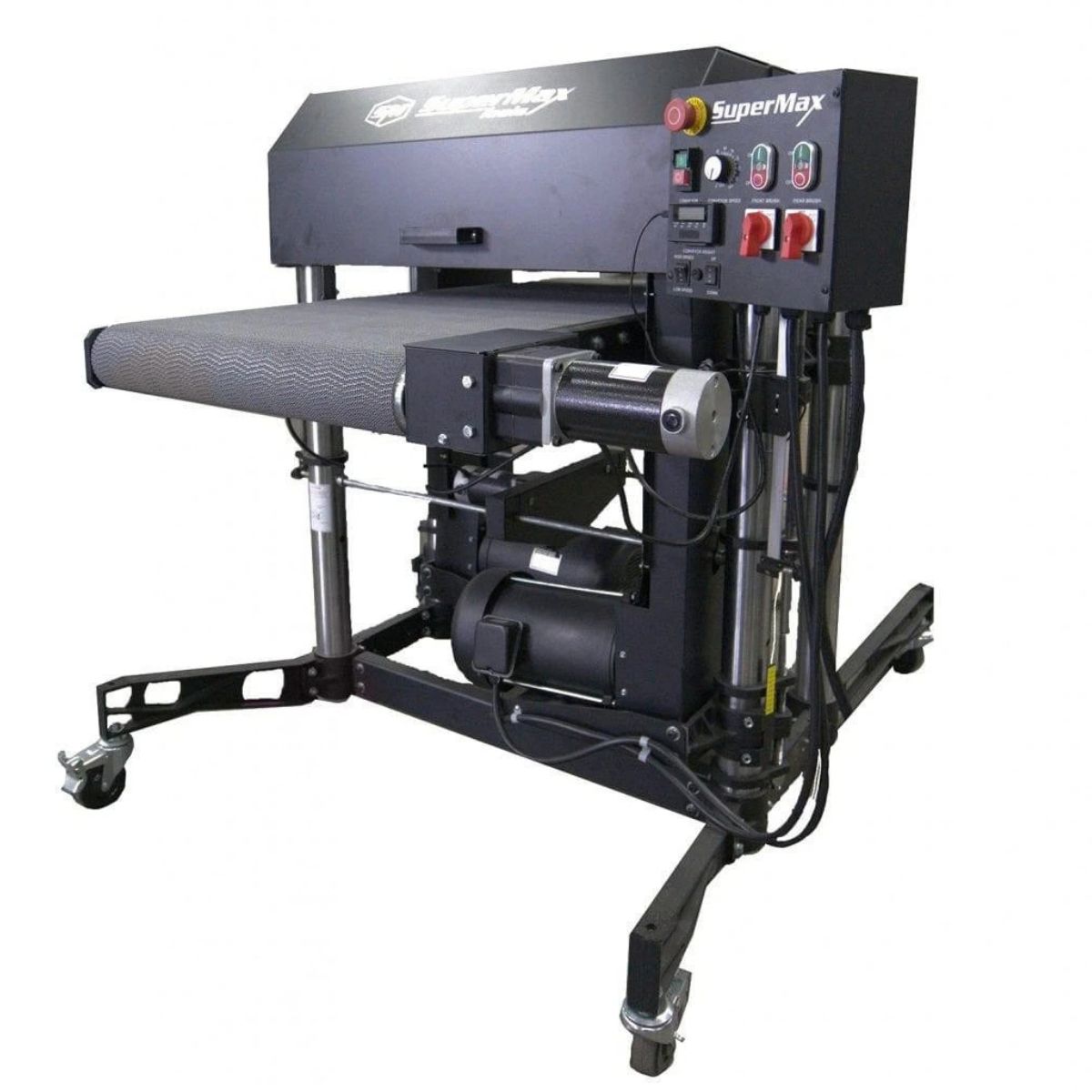

Laguna SuperBrush 36" Double-Head Sander - Gives you a two-head brush sanding station for wide panels and production finishing.

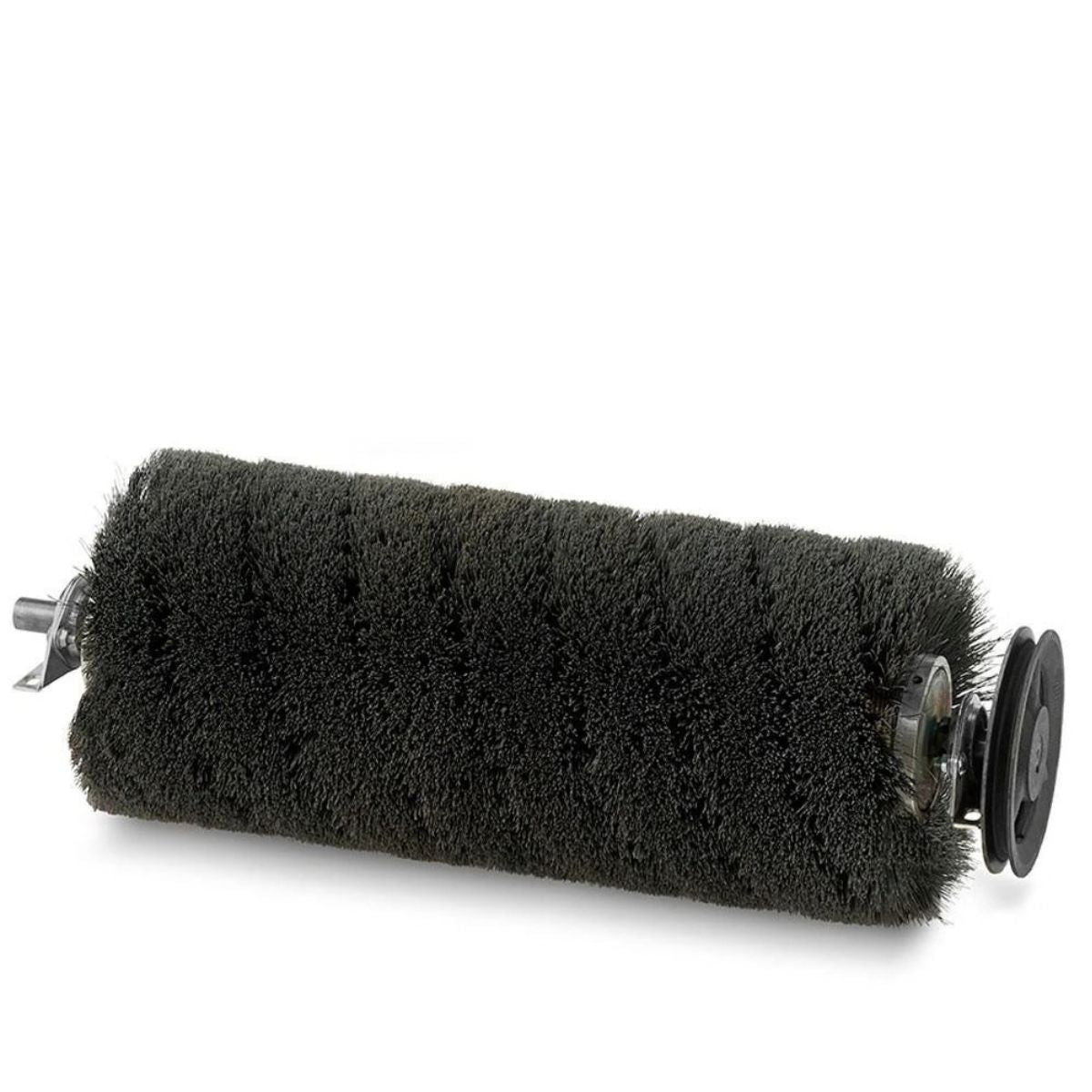

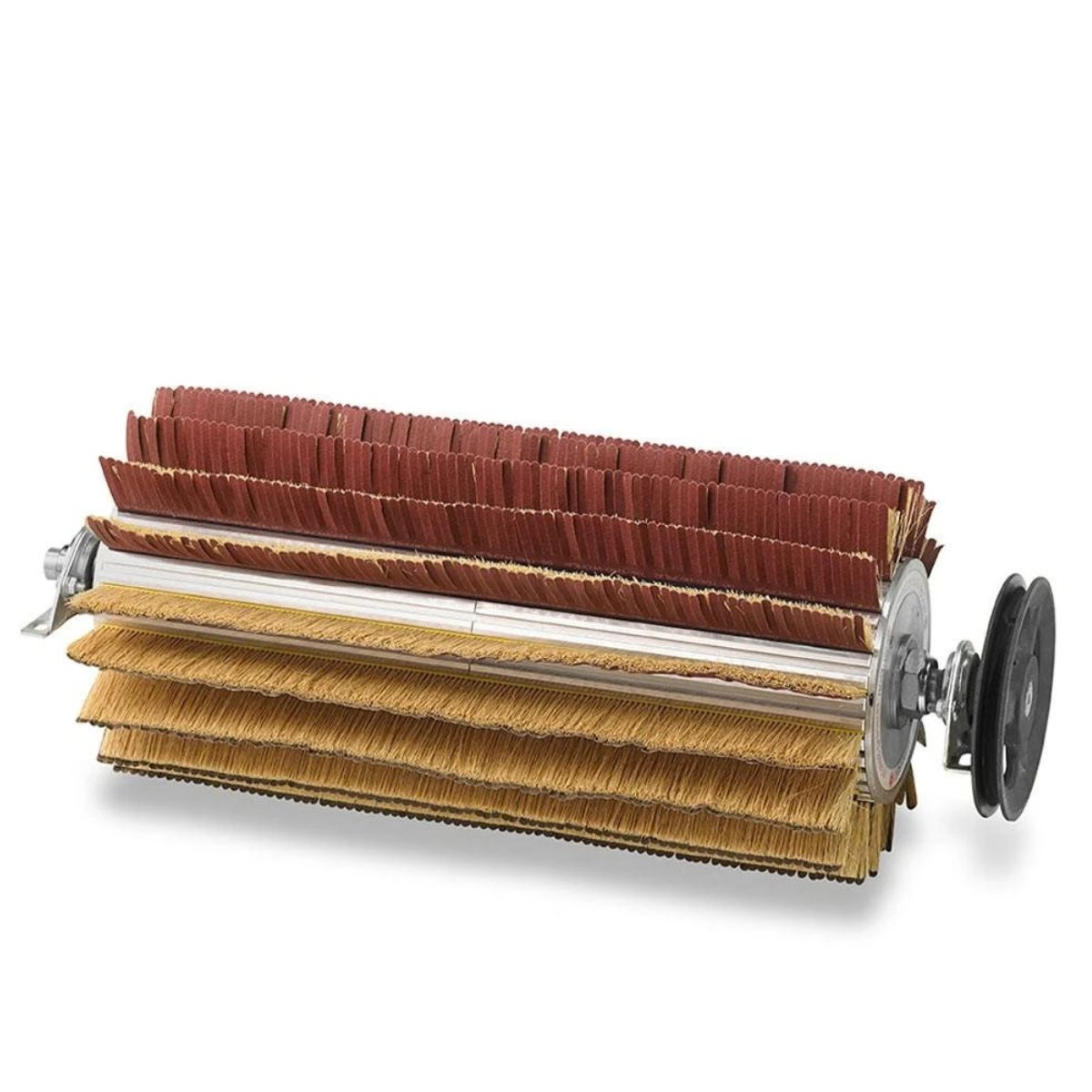

Two Brushes - Let you start sanding right out of the crate.
Caster Set - Makes it easier to move the machine into position in your shop.
ProScale DRO - Shows stock thickness and material removal so you can set depth with confidence.

Specs

Laguna SuperBrush 36" Double-Head Sander Specifications

Maximum Sanding Width: 36 in
Minimum Stock Length: 11 in
Maximum Stock Thickness: 9 in (varies with brush style)
Minimum Stock Thickness: 1/32 in (varies by application)
Brush Heads: 2
Typical Brush Diameter: 9 in to 12 in
Typical Bristle Length: 1-1/2 in to 3 in
Brush Speed: Variable, 400 to 1200 RPM
Brush Rotation: Reversible (first brush)
Conveyor Speed: Variable, 0 to 30 FPM
Conveyor Motor: Direct drive DC, 220 in-lb torque
Drive Motors: (2) 7-1/2 HP TEFC
Voltage: 208-230V, 60 Hz
Motor Phase: 3 Phase
Electrical Service: (2) 20 amp
Height Adjustment: Power and manual, 3/32 in per turn
Digital Readout: ProScale DRO
Dust Hood: Steel with hinged back
Dust Ports: (6) 4 in
Minimum Dust Collection: 1800 CFM
Dimensions (H x W x D): 67 in x 58 in x 54 in
Shipping Weight: 1340 lb
