Laguna SuperBrush 49" Double-Head Sander

Laguna SuperBrush 49" Double-Head Sander

by Laguna Tools

SKU SUPMX-93497-2

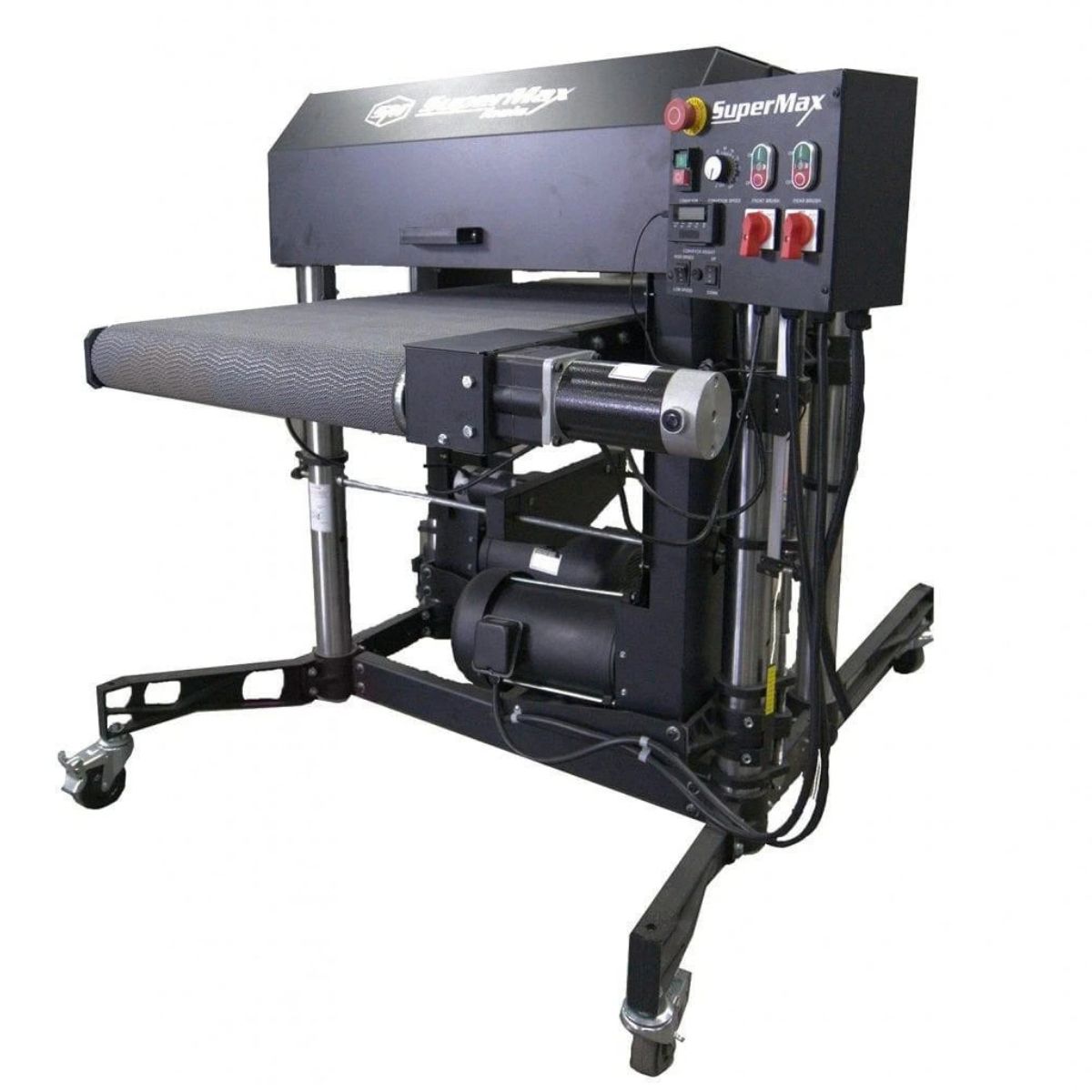

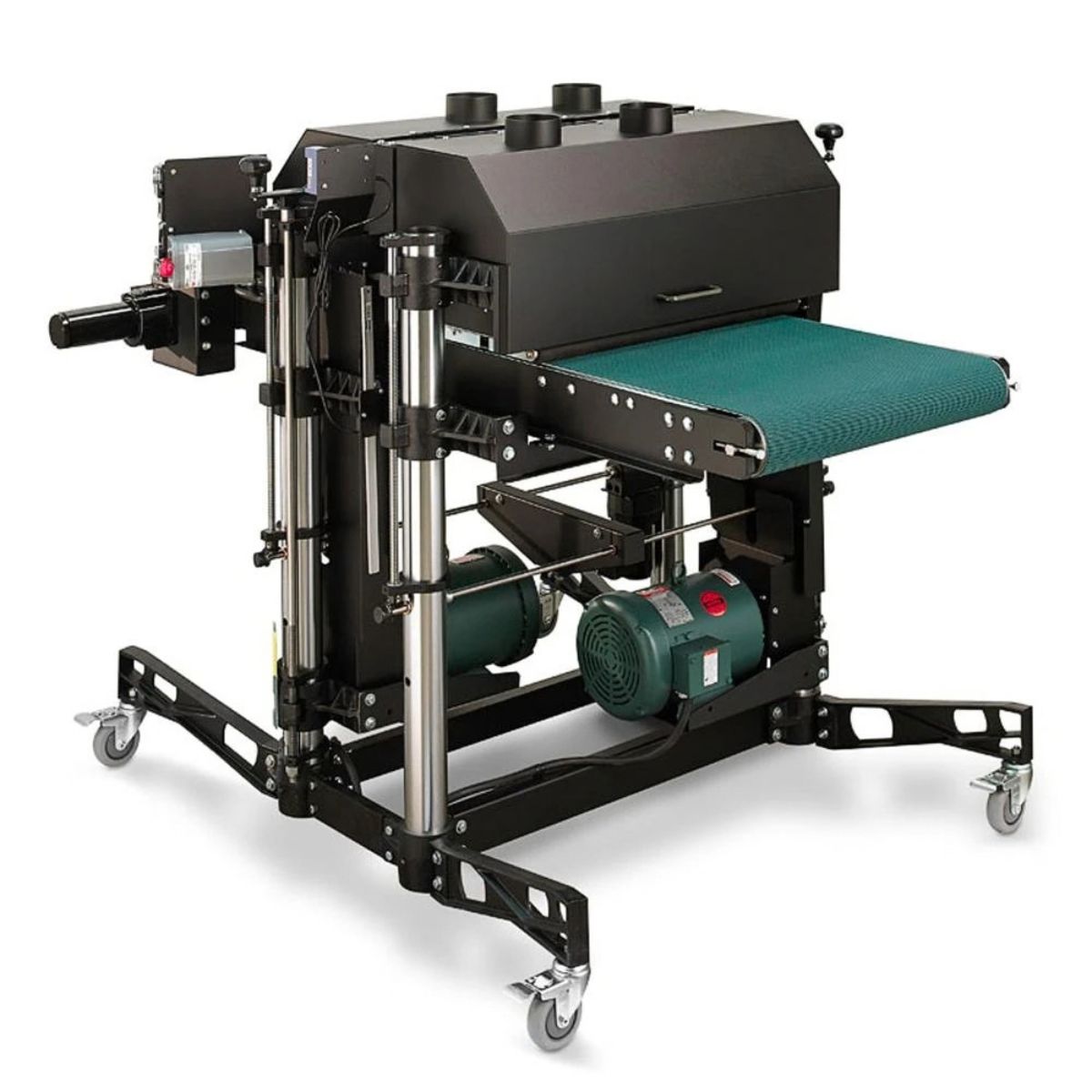

The Laguna SuperBrush 49" Double-Head Sander is a production brush sander that delivers consistent finishing on flat and profiled parts.

Twin 10 HP heads sand in one pass
ProScale DRO shows exact stock thickness
49" width handles wide panels

$ 47,999.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna SuperBrush 49" Double-Head Sander

Hand sanding profiled parts, sealer coats, and raw stock eats up shop hours and leaves uneven results from piece to piece. The Laguna SuperBrush 49" Double-Head Sander runs parts past two brush heads on a conveyor for steady, repeatable finishing.

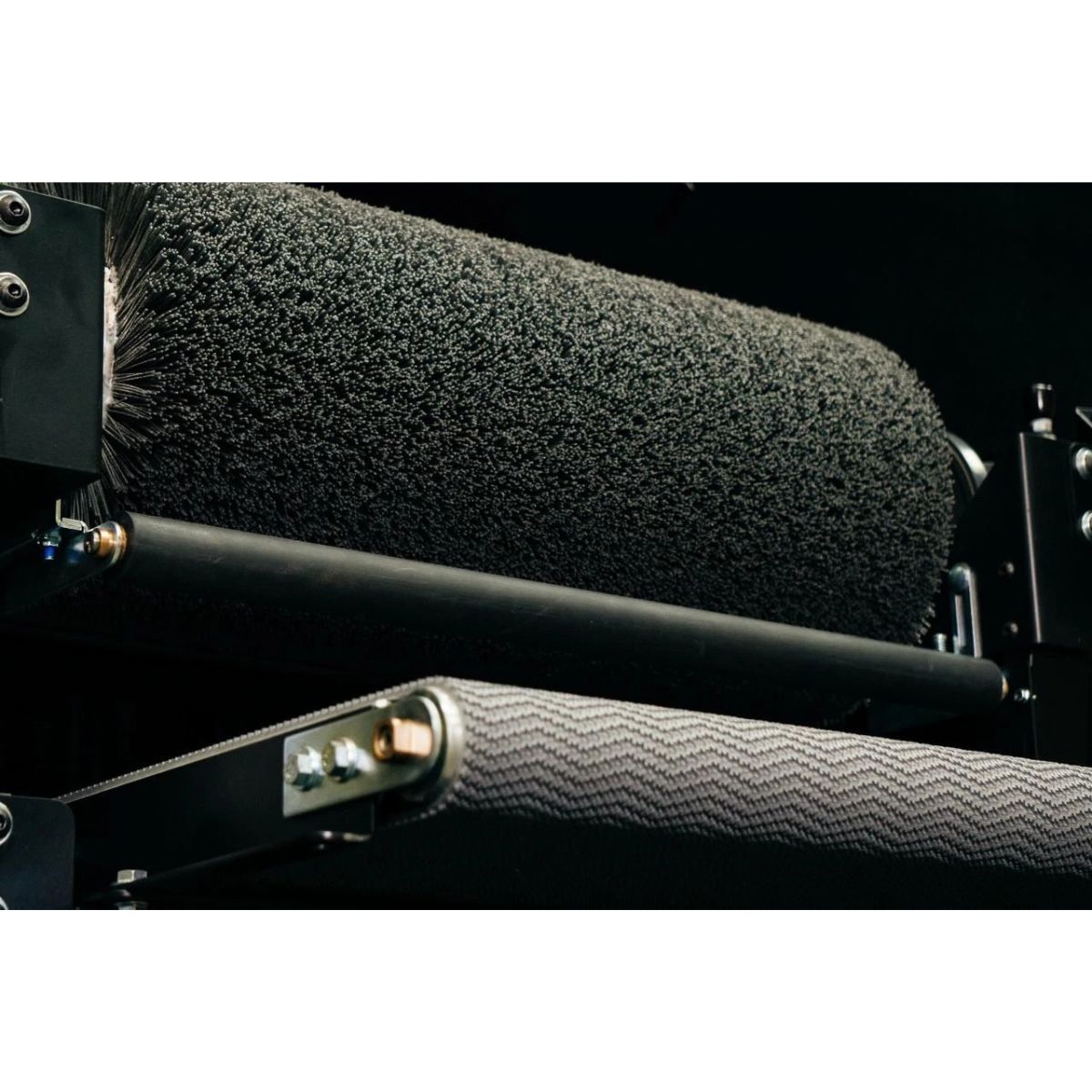

Twin 10 HP Brush Heads Cover More in One Pass - Each head runs on its own 10 HP motor, and the first brush can reverse direction to change how it works the surface.
Variable Brush Speed With RPM Gauge Matches the Finish - Brush speed adjusts from 400 to 1200 RPM and shows on a gauge, so you can go light for sealer scuffing or work harder on raw wood.
ProScale DRO Shows Stock Thickness at a Glance - The digital readout shows how much material comes off each pass and the actual thickness as parts exit, so you hit your target without guesswork.

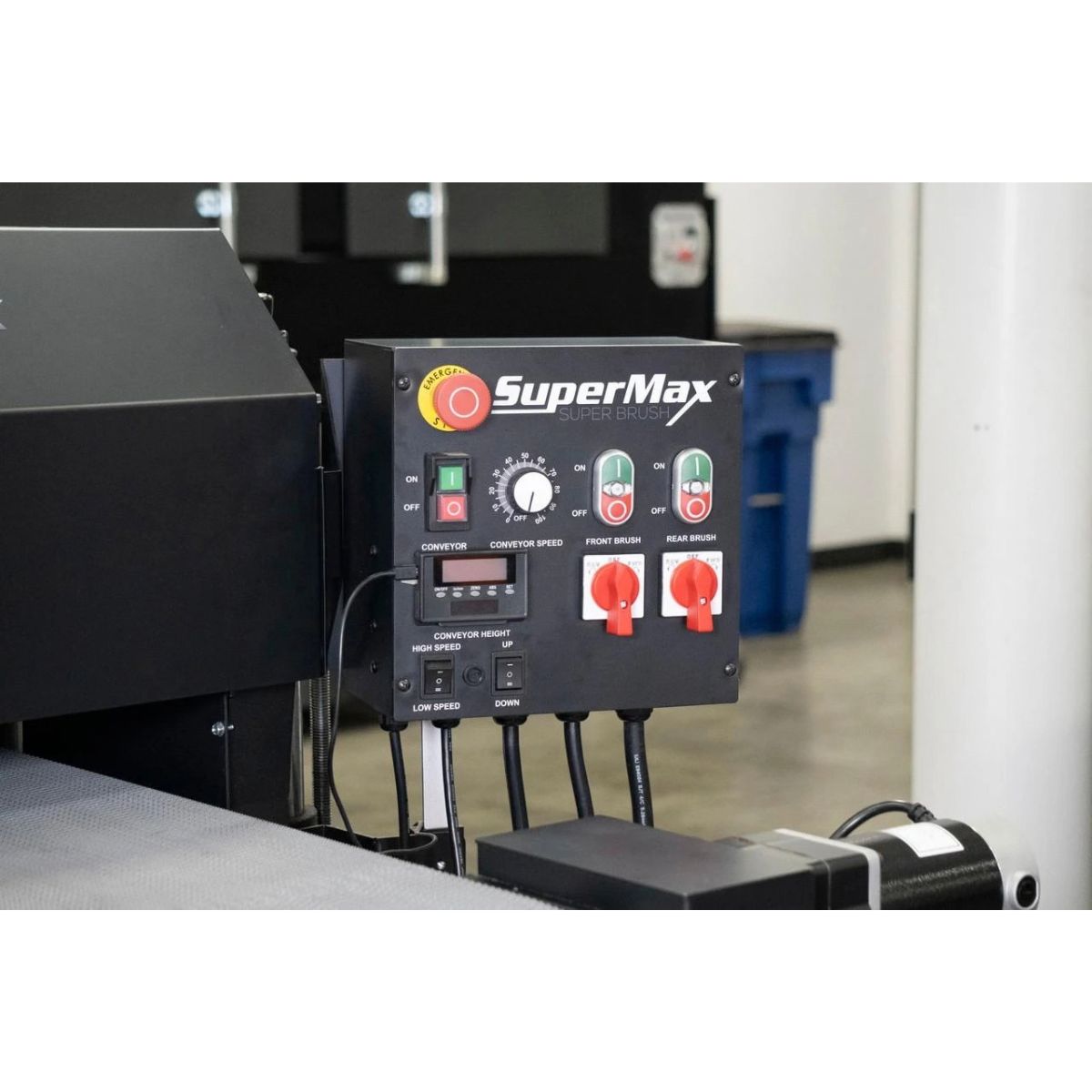

Variable Speed Conveyor Controls Sanding Time - The direct drive conveyor adjusts from 0 to 30 feet per minute, letting you slow down for heavy work or speed up for light passes.

Feed a run of raised panel doors through after sealer, and they come out scuffed and ready for topcoat without an afternoon of hand sanding.

Laguna SuperBrush 49" Double-Head Sander

Laguna SuperBrush 49" Double-Head Sander

Laguna SuperBrush 49" Double-Head Sander

Laguna SuperBrush 49" Double-Head Sander

What's Included

What's Included? Laguna SuperBrush 49" Double-Head Sander

Laguna SuperBrush 49" Double-Head Sander - Gives you a 49 inch wide conveyor brush sander with two sanding heads for production finishing.

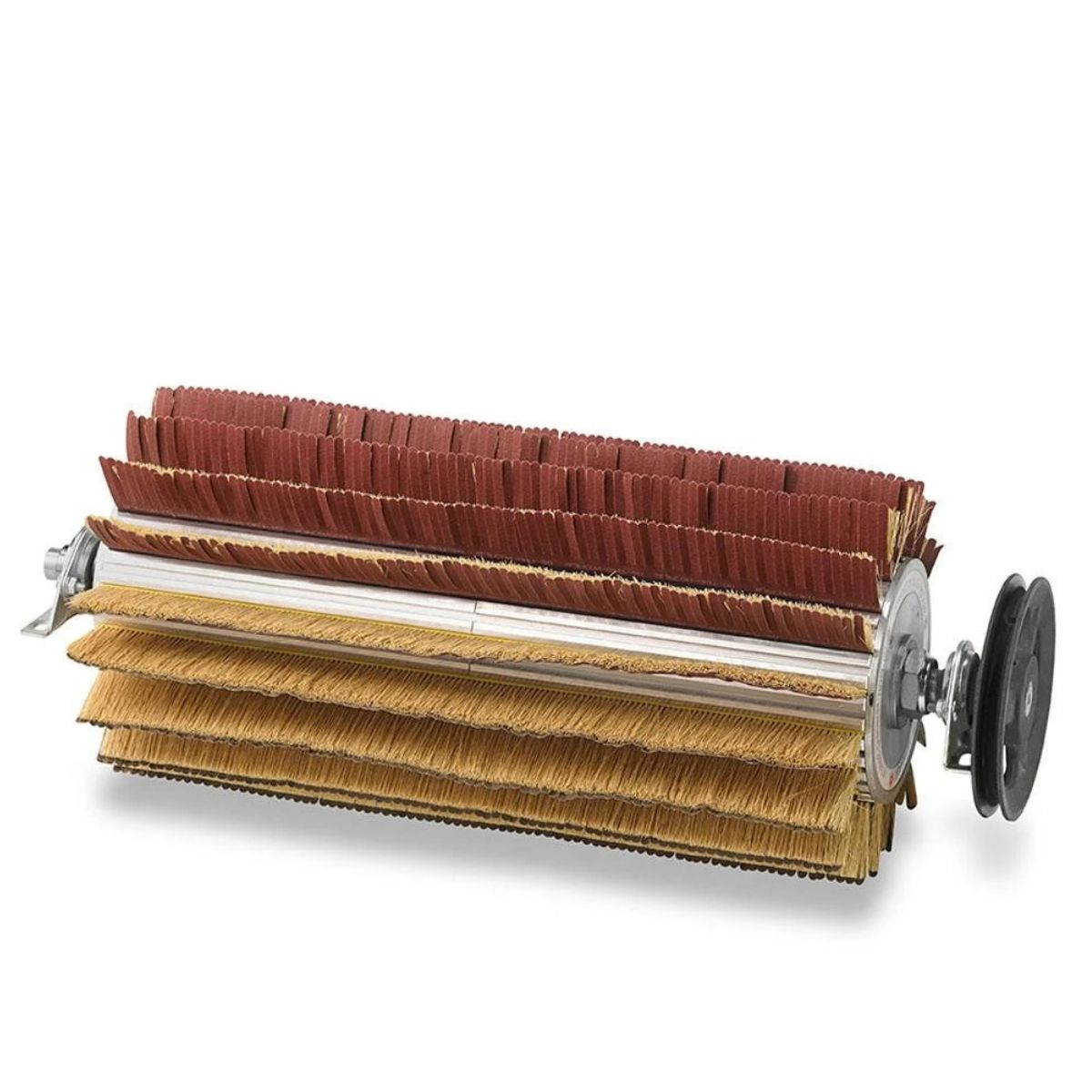

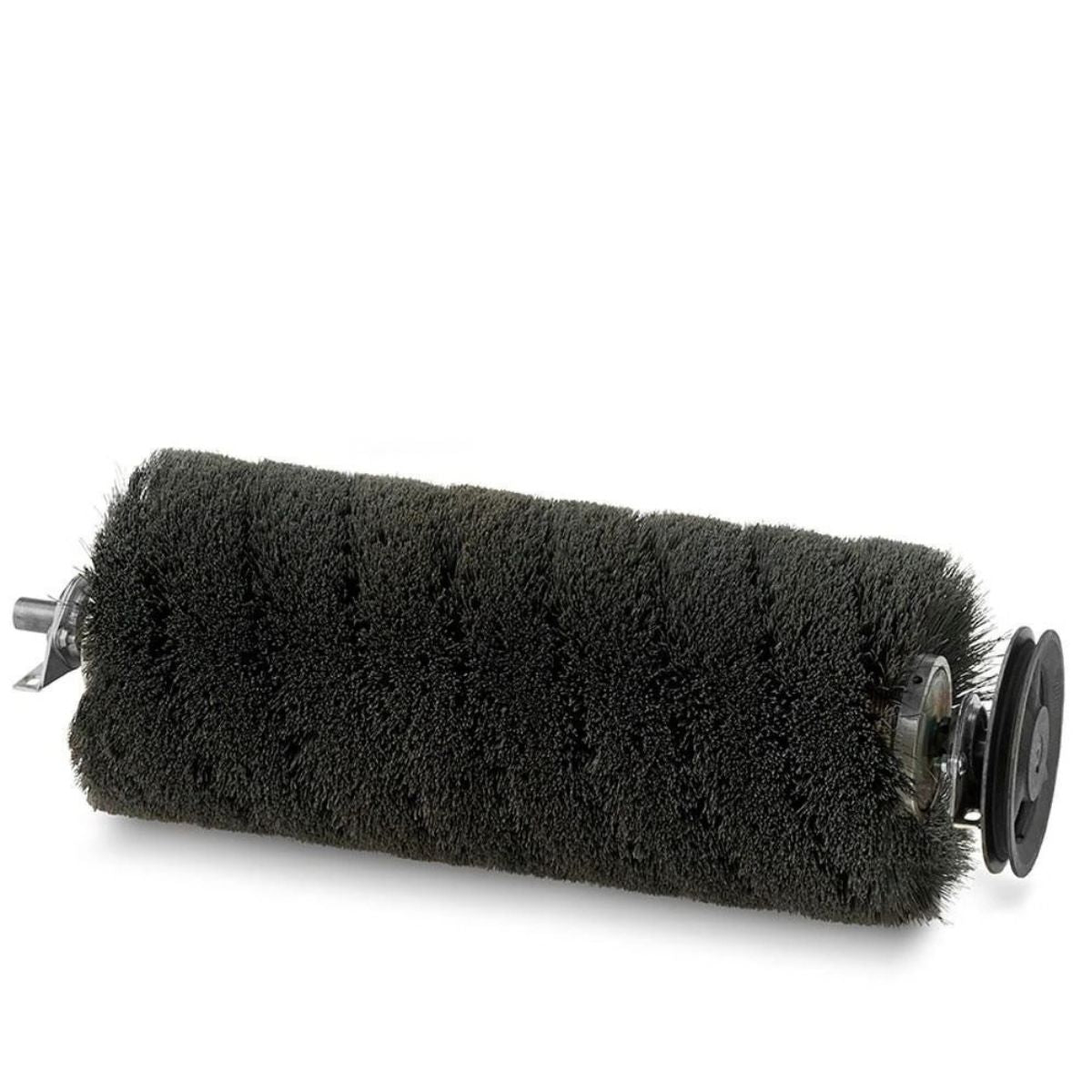

Sanding Brushes (2) - One brush for each head so you can start sanding right away.
ProScale DRO - Shows material removed per pass and final stock thickness for accurate setup.
Caster Set - Lets you move the machine into position around the shop.

Specs

Laguna SuperBrush 49" Double-Head Sander Specifications

SKU: SUPMX-93497-2
Brush Heads: 2
Maximum Sanding Width: 49 in
Minimum Stock Length: 11 in
Maximum Stock Thickness: 9 in (varies with brush style)
Minimum Stock Thickness: 1/32 in (varies by application)
Typical Brush Diameter: 9 to 12 in
Typical Bristle Length: 1-1/2 to 3 in
Brush Speed: Variable, 400 to 1200 RPM with RPM gauge
Brush Rotation: Reversible (first brush)
Height Adjustment: Power and manual, 3/32 in per turn
Digital Readout: ProScale DRO
Drive Motors: (2) 10 HP TEFC
Conveyor Motor: Direct drive DC, 220 in-lb torque
Conveyor Speed: Variable, 0 to 30 FPM
Voltage: 208-230V, 60 Hz
Motor Phase: 3 Phase
Electrical Service: (2) 30 amp
Dust Hood: Steel with hinged back
Dust Ports: (6) 4 in
Minimum Dust Collection: 2400 CFM
Shipping Weight: 1550 lb

Laguna SuperBrush 49" Double-Head Sander Manual
