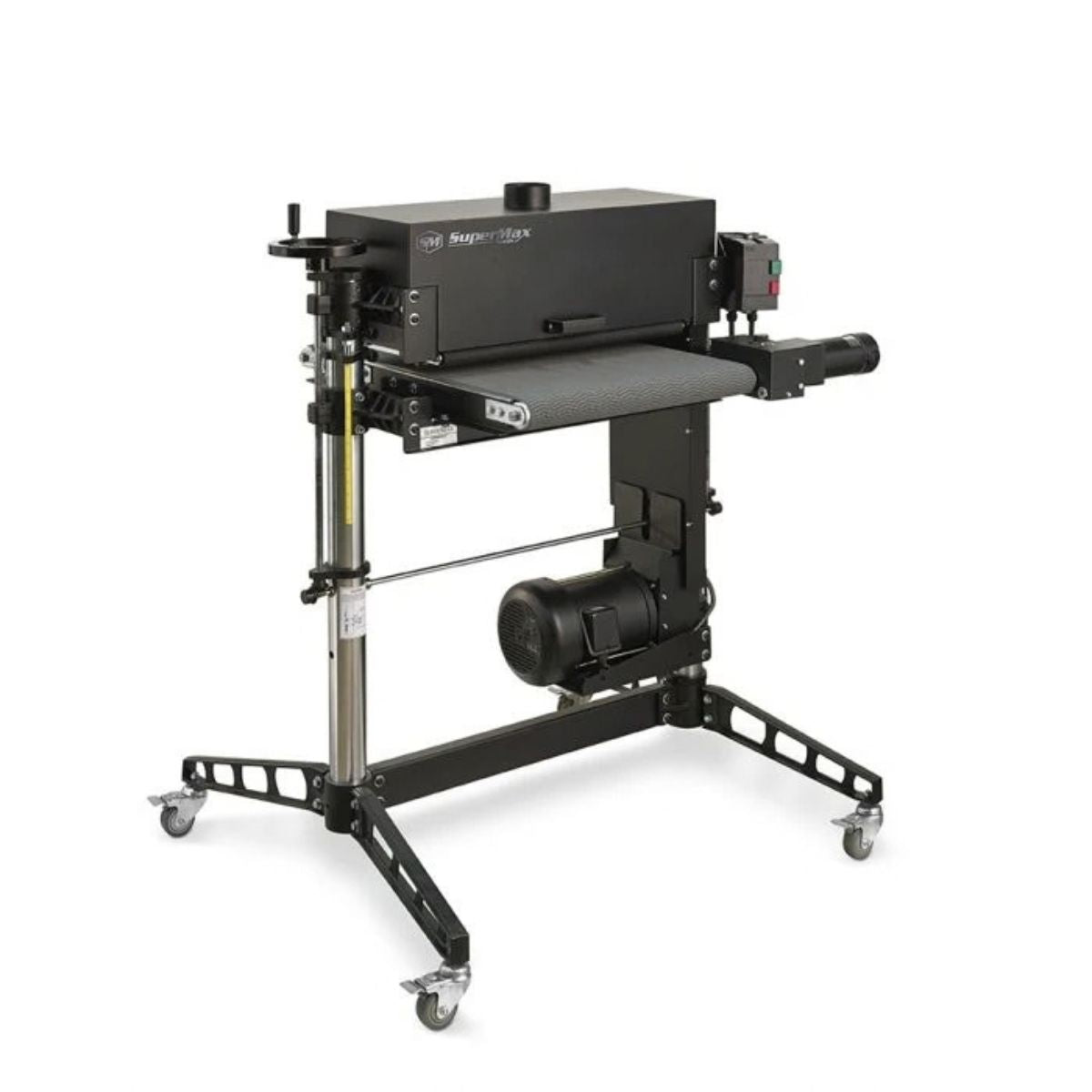

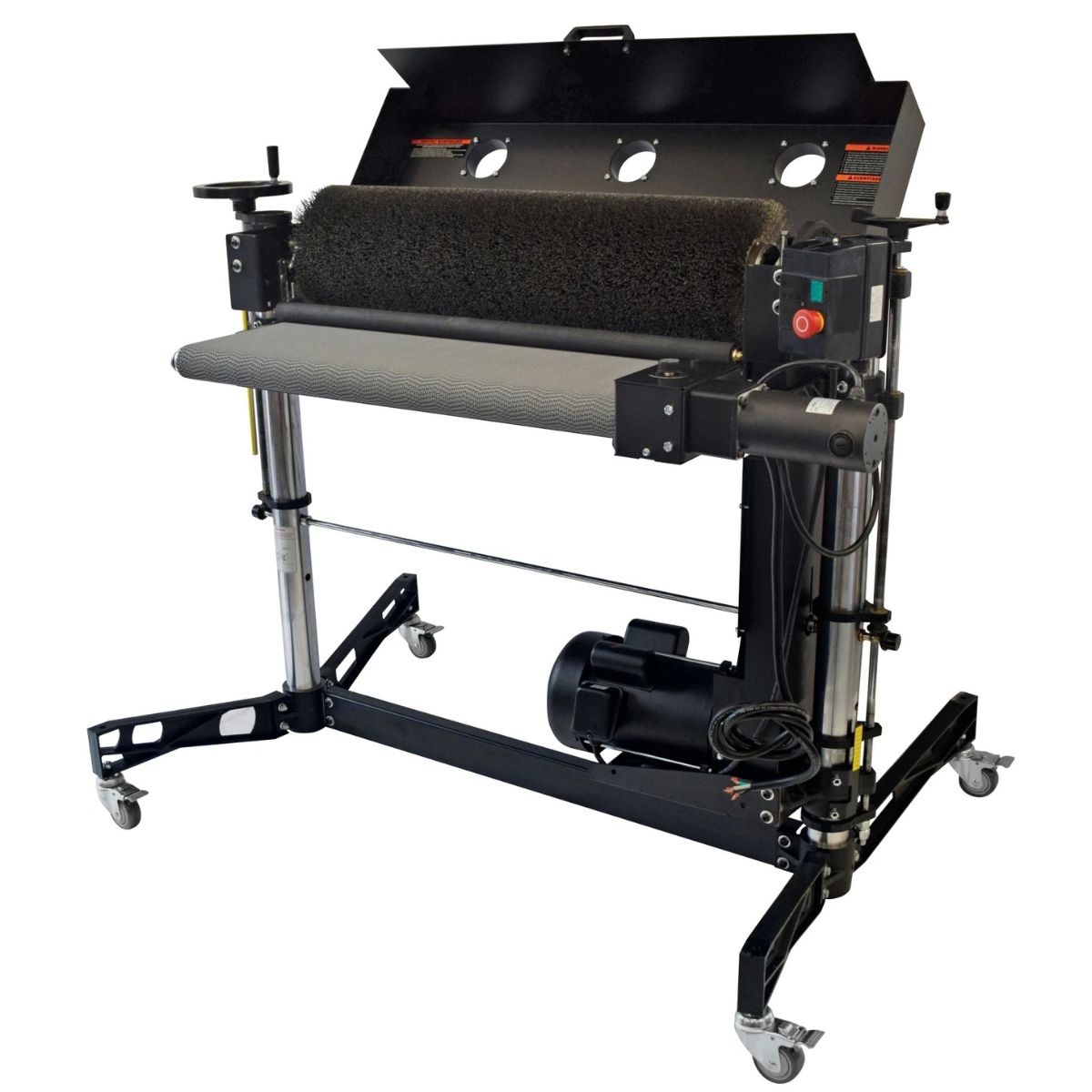

Laguna SuperBrush 49" Single-Head Sander

Name: Laguna SuperBrush 49" Single-Head Sander
Brand: Laguna Tools
SKU: SUPMX-93497
Price: 24299.0 USD
Availability: InStock

by Laguna Tools

SKU SUPMX-93497

The Laguna SuperBrush 49" Single-Head Sander is a wide brush sander that delivers consistent finishing on flat and profiled stock.

49 inch capacity handles wide panels
Variable brush speed tunes each finish
Quick change heads cut setup time

$ 24,299.00

Lowest Price Guarantee

If you (somehow) find a lower price, call us & we'll beat it: 1-800-727-6553

Quantity

IN-STOCK: Ships out in 1 to 2 weeks

Questions? Call or Email Us

1-800-727-6553

support@advmachinery.com

Laguna SuperBrush 49" Single-Head Sander

Hand sanding profiles, edges, and textured panels takes hours and rarely gives the same finish twice. The Laguna SuperBrush 49" Single-Head Sander uses a rotating brush head to sand wide panels and shaped parts evenly as they feed through.

Variable Speed Brush Head Controls the Finish - Brush speed adjusts from 400 to 1200 RPM, so you can go light for scuff sanding or heavier for texturing.
Variable Speed Conveyor Sets the Feed Rate - A direct drive DC motor feeds stock from 0 to 15 feet per minute to match the brush and the finish you want.
Adjustable Tension Rollers Keep Stock From Slipping - The rollers hold parts down on the steel conveyor bed so each piece stays steady under the brush.

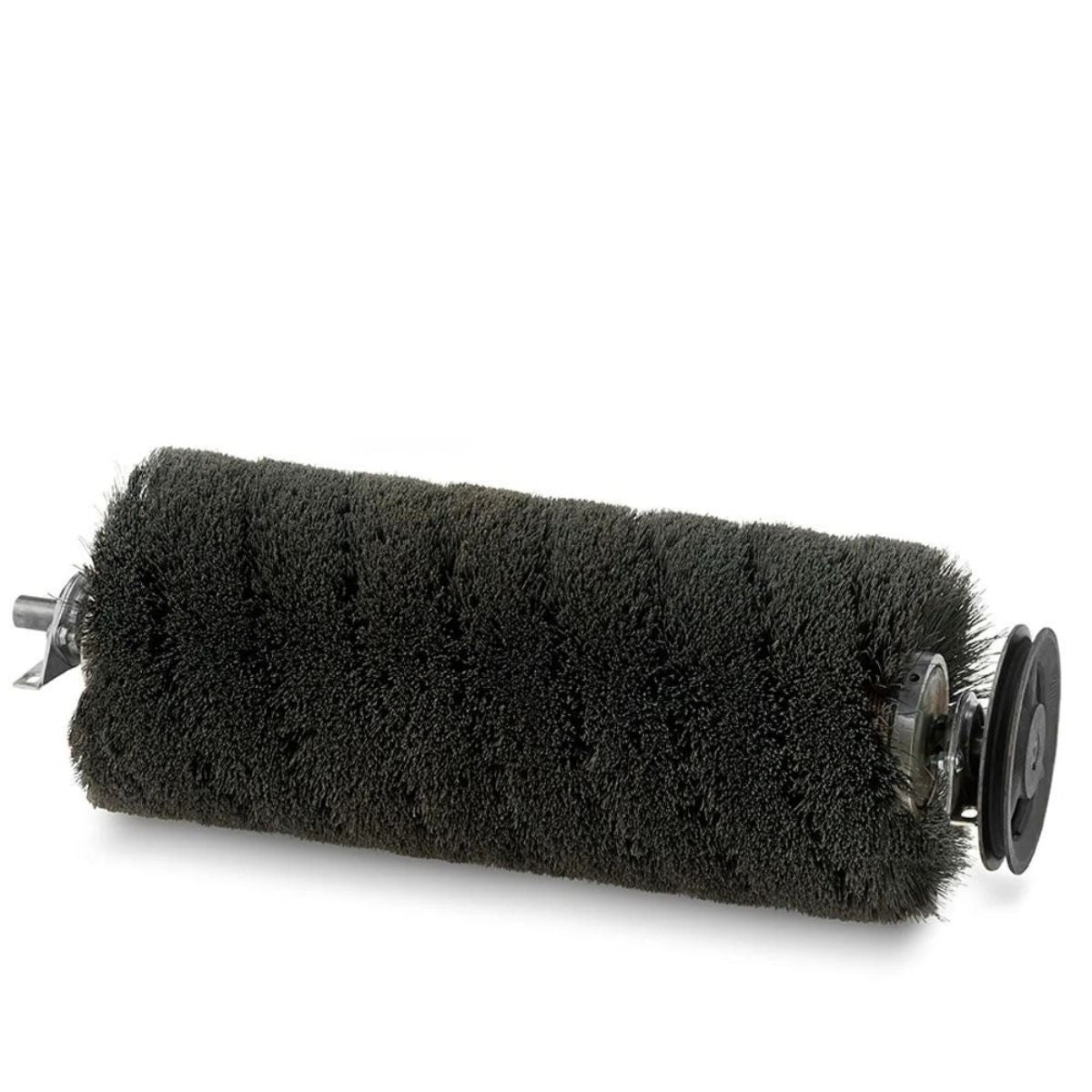

Quick Change Brush Head Speeds Setup - Brush heads and abrasive loadings swap out quickly, so moving from sealer sanding to wire brushing takes less downtime.

Feed a stack of raised panel doors through after sealer and they come out evenly scuffed and ready for topcoat.

What's Included

What's Included? Laguna SuperBrush 49" Single-Head Sander

Laguna SuperBrush 49" Single-Head Sander - Sands and finishes stock up to 49 inches wide with a single brush head.
Bristle Contact Gauge - Helps you set how far the bristles reach into the work for even contact across the part.

Specs

Laguna SuperBrush 49" Single-Head Sander Specifications

Model: SuperBrush 49
SKU: SUPMX-93497
Number of Brush Heads: 1
Maximum Sanding Width: 49 in
Maximum Stock Thickness: 11 in (varies with brush style)
Minimum Stock Thickness: 1/32 in
Minimum Stock Length: 10 in
Brush Diameter: 9 to 11 in (typical)
Bristle Length: 1-1/2 to 3 in (typical)
Brush Speed: 400 to 1200 RPM, variable
Conveyor Feed Rate: 0 to 15 FPM, variable
Conveyor Motor: Direct drive DC, 200 in-lb torque
Conveyor: Reinforced steel bed with poly belt
Drive Motor: 7-1/2 HP TEFC
Voltage: 208-230V
Phase: 3 Phase
Frequency: 60 Hz
Power Service: 20 amp

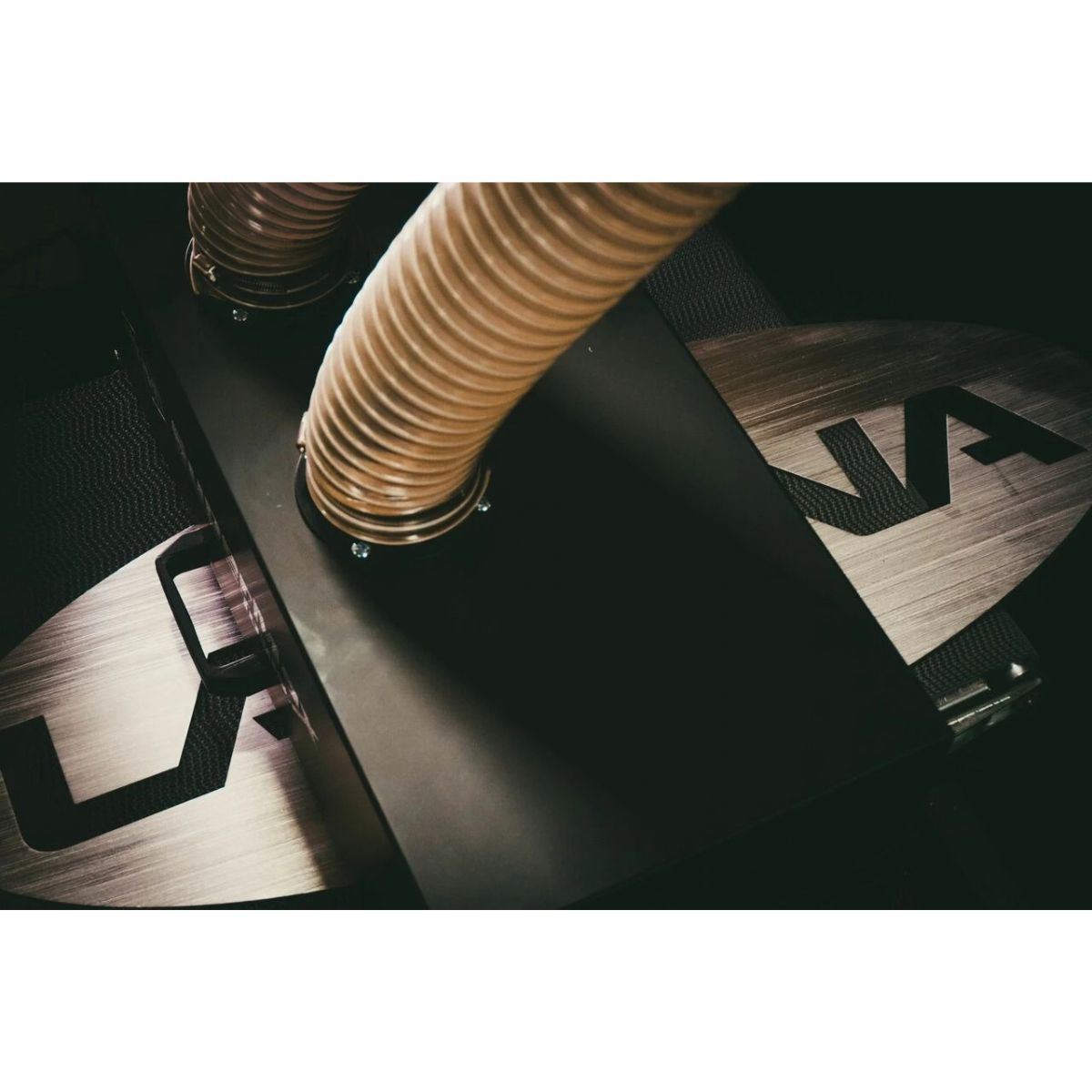

Dust Hood: Steel with hinged back
Dust Ports: Three 4 in ports
Minimum Dust Collection: 1800 CFM
Dimensions (H x W x D): 50 x 71 x 31 in
Shipping Weight: 775 lb
